Smart Key Code Saving

Connect the DLC cable of scan tool to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on scan tool.
Select the vehicle model and then do "Smart key code saving".

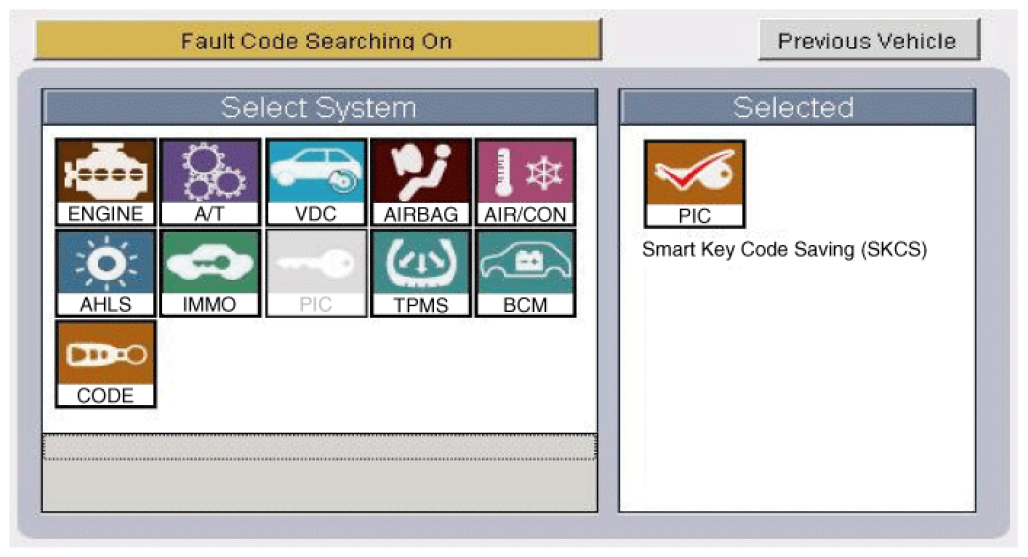

Fig 1: Screen Display - Selecting Smart Key Code Saving (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

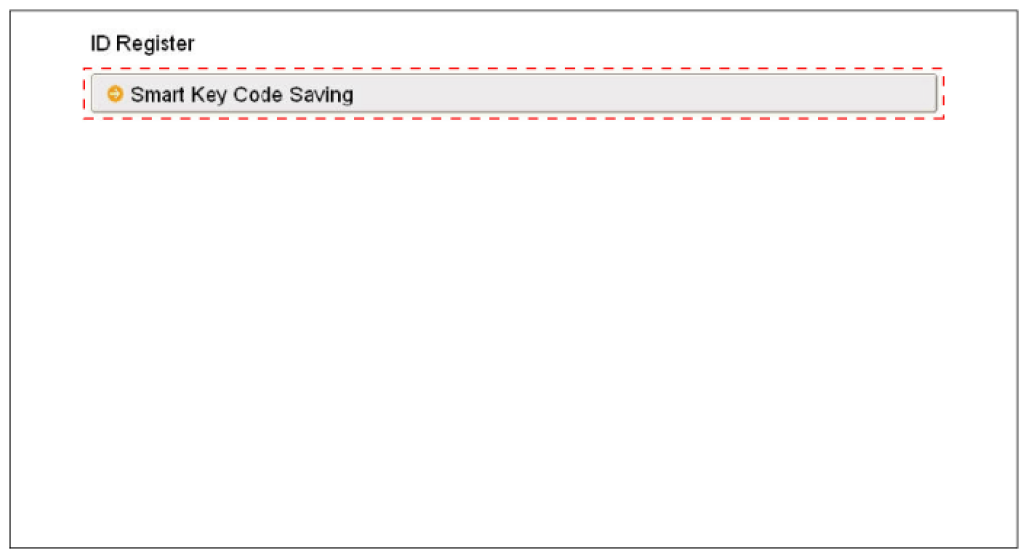

Fig 2: Screen Display - Selecting Smart Key Code Saving (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

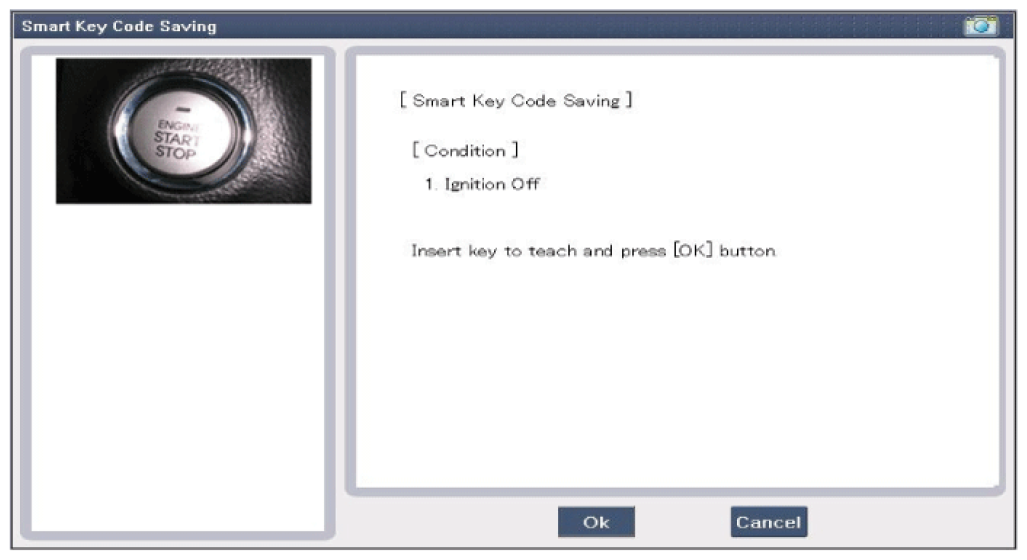

Fig 3: Screen Display - Selecting Smart Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

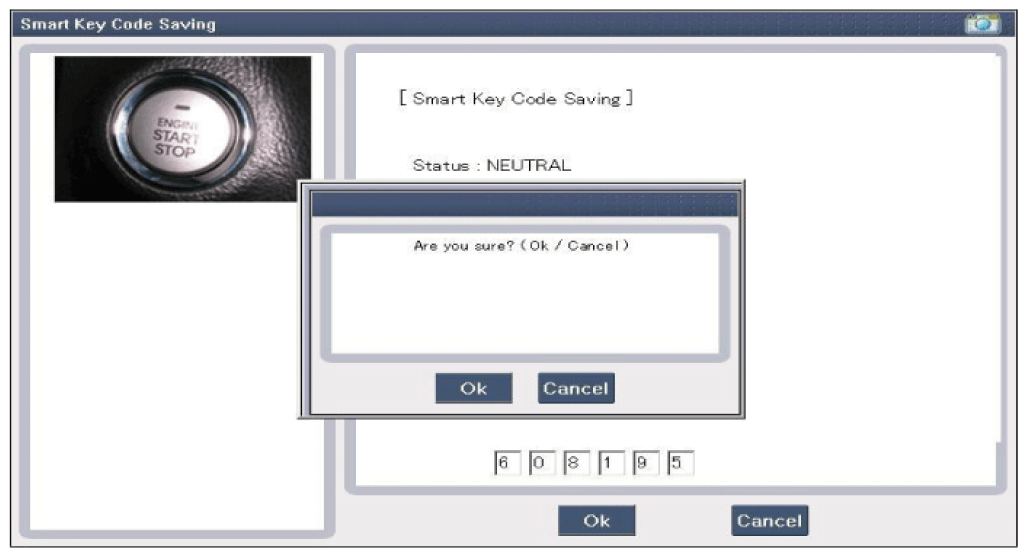

Fig 4: Screen Display - Smart Key Code Saving (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Screen Display - Smart Key Code Saving (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

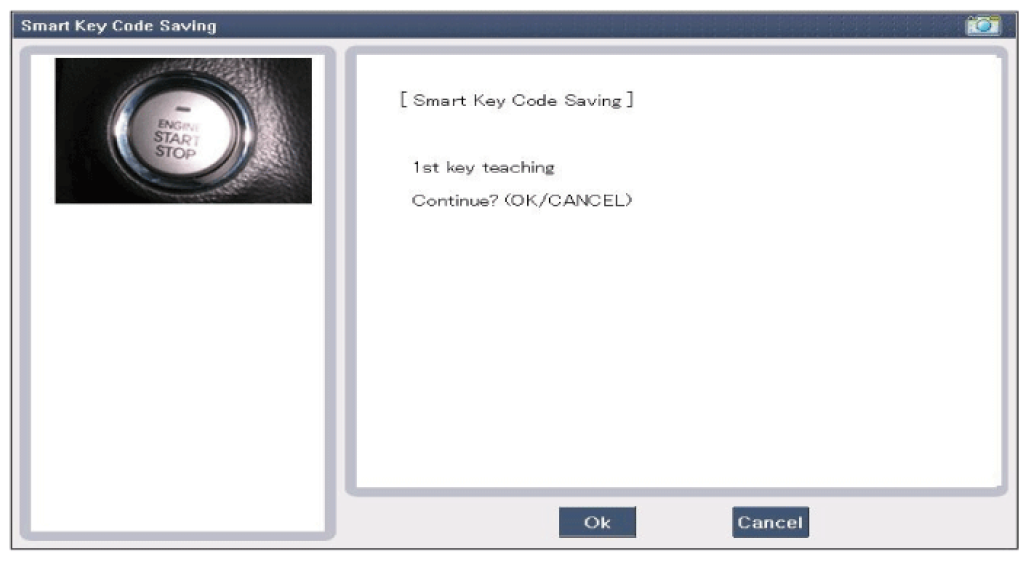

Fig 6: Screen Display - 1st Key Teaching (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Screen Display - 1st Key Teaching (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Input the "Pin code" for second key teaching.

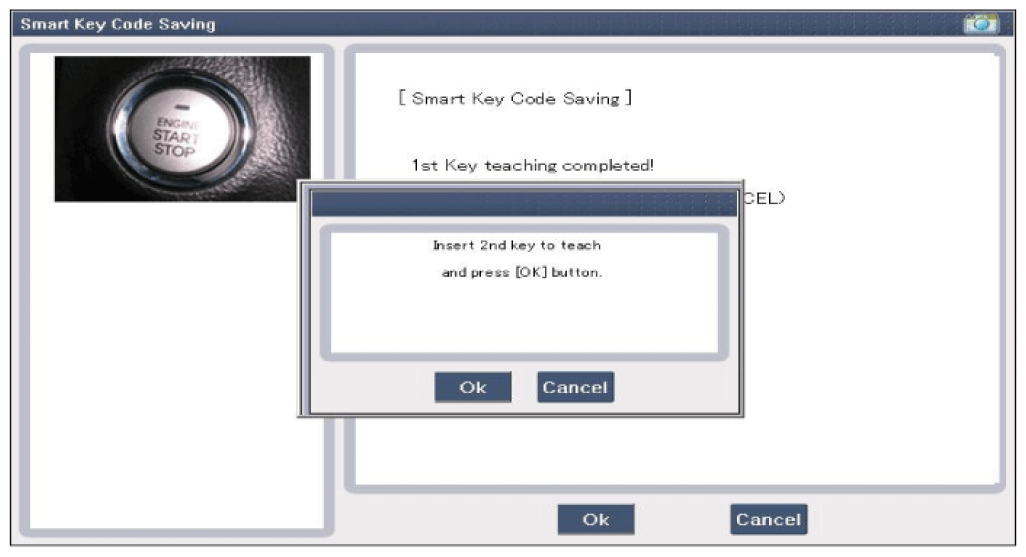

Fig 8: Screen Display - Continuing To 2nd Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Screen Display - 2nd Key Teaching (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second key teaching completed".

Fig 10: Screen Display - 2nd Key Teaching (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

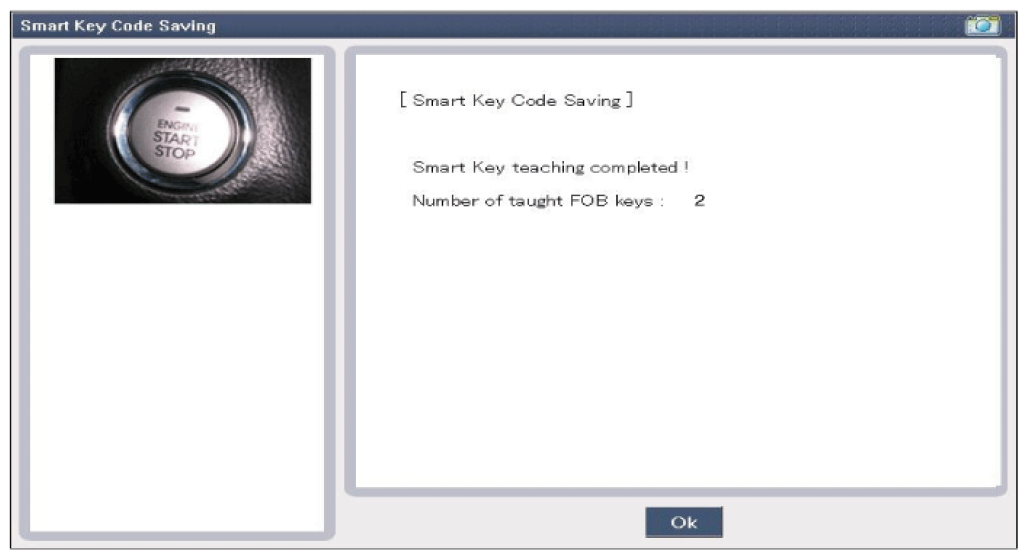

Then the screen will be shown as below when key teaching process is completed.
