Components and Components Location: Components

[Oil Pump Type]

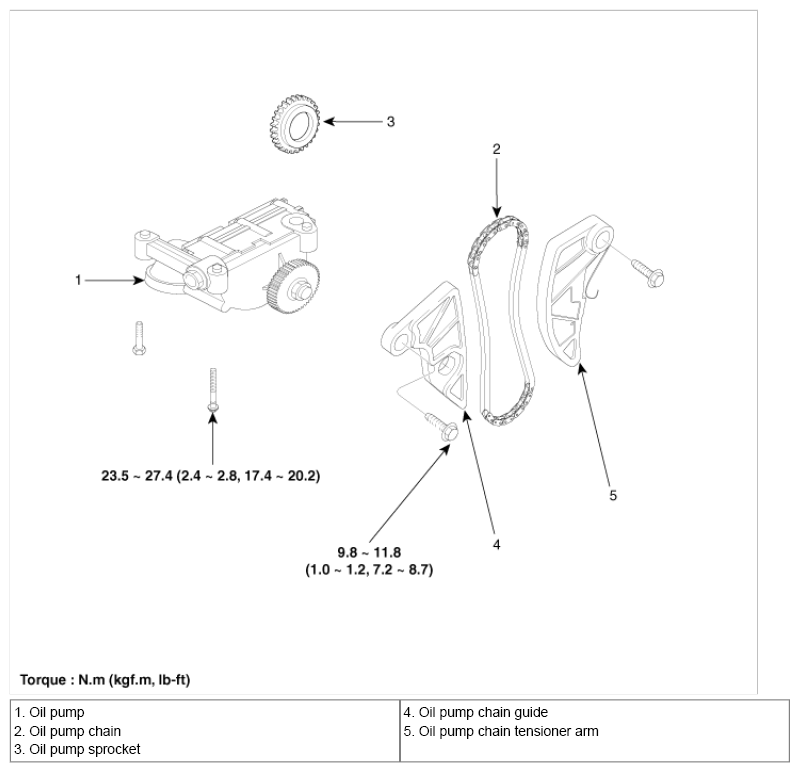

Fig 1: Locating Oil Pump Components With Torque Specifications (Oil Pump Type)
G06495110Courtesy of KIA MOTORS AMERICA, INC.

[BSM Type]

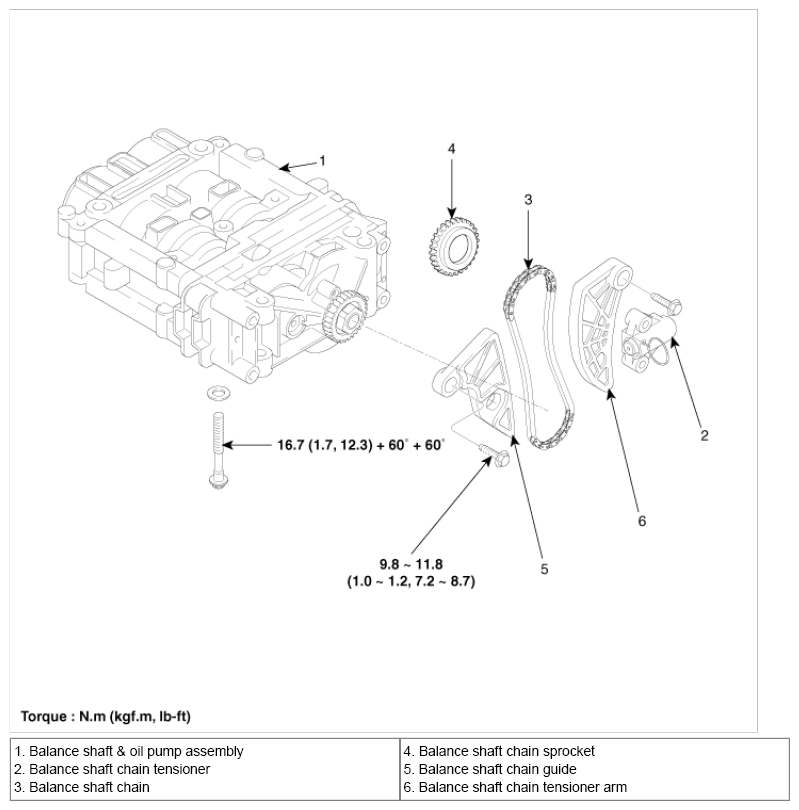

Fig 2: Locating Oil Pump Components With Torque Specifications (BSM Type)
G06495111Courtesy of KIA MOTORS AMERICA, INC.
