Relay Box: Application and ID

Fuse and Relay Information

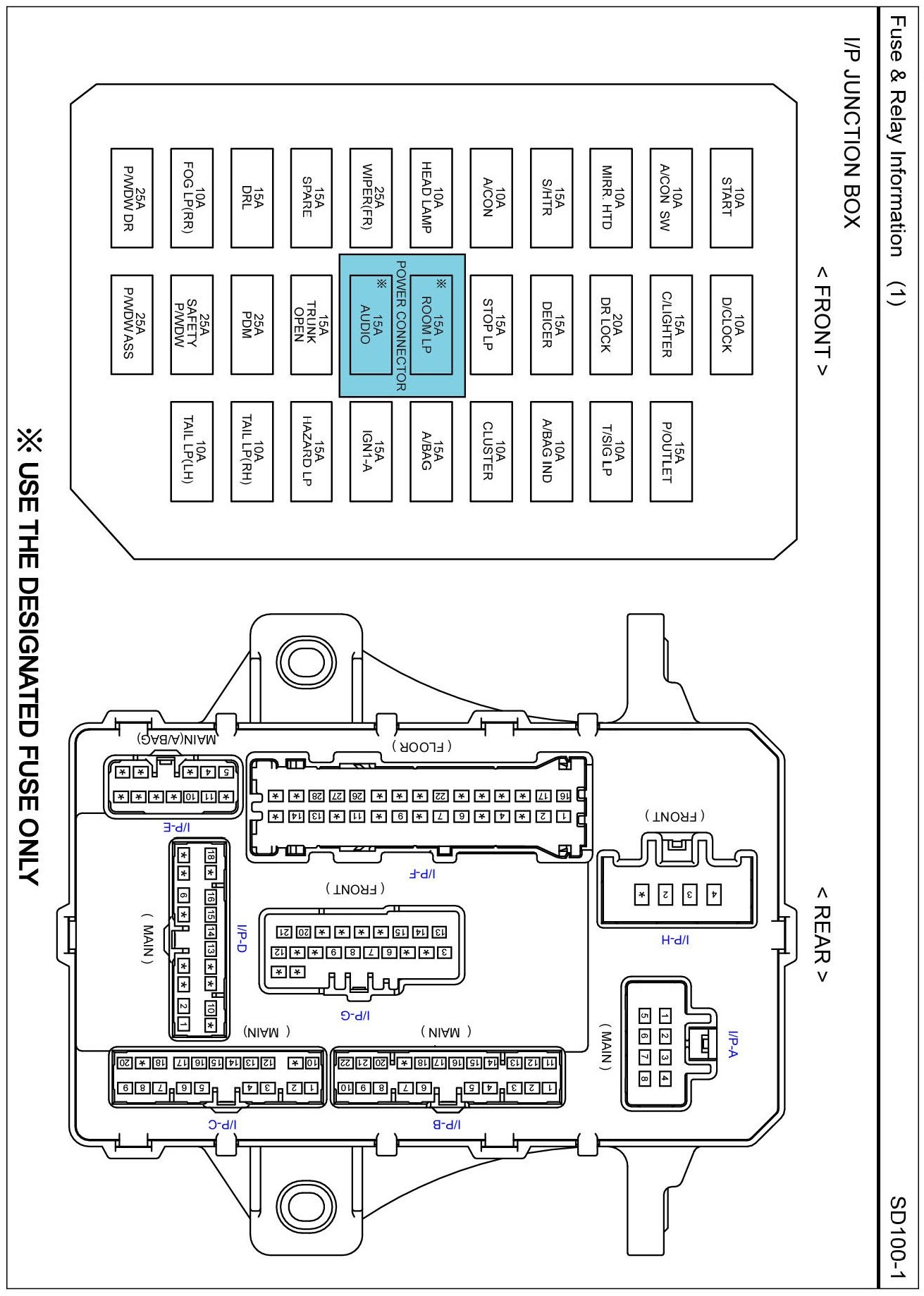

I/P Junction Box View:

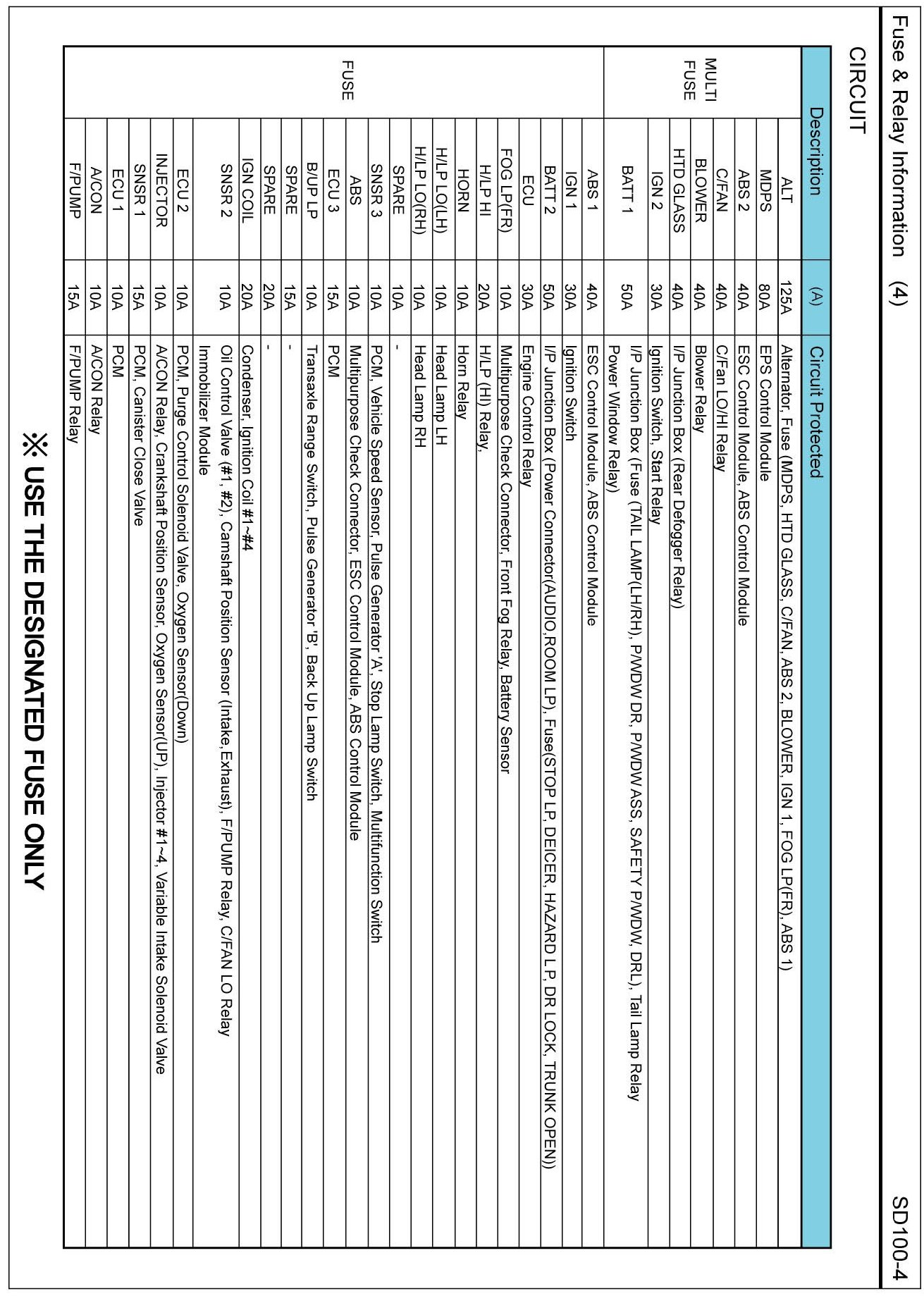

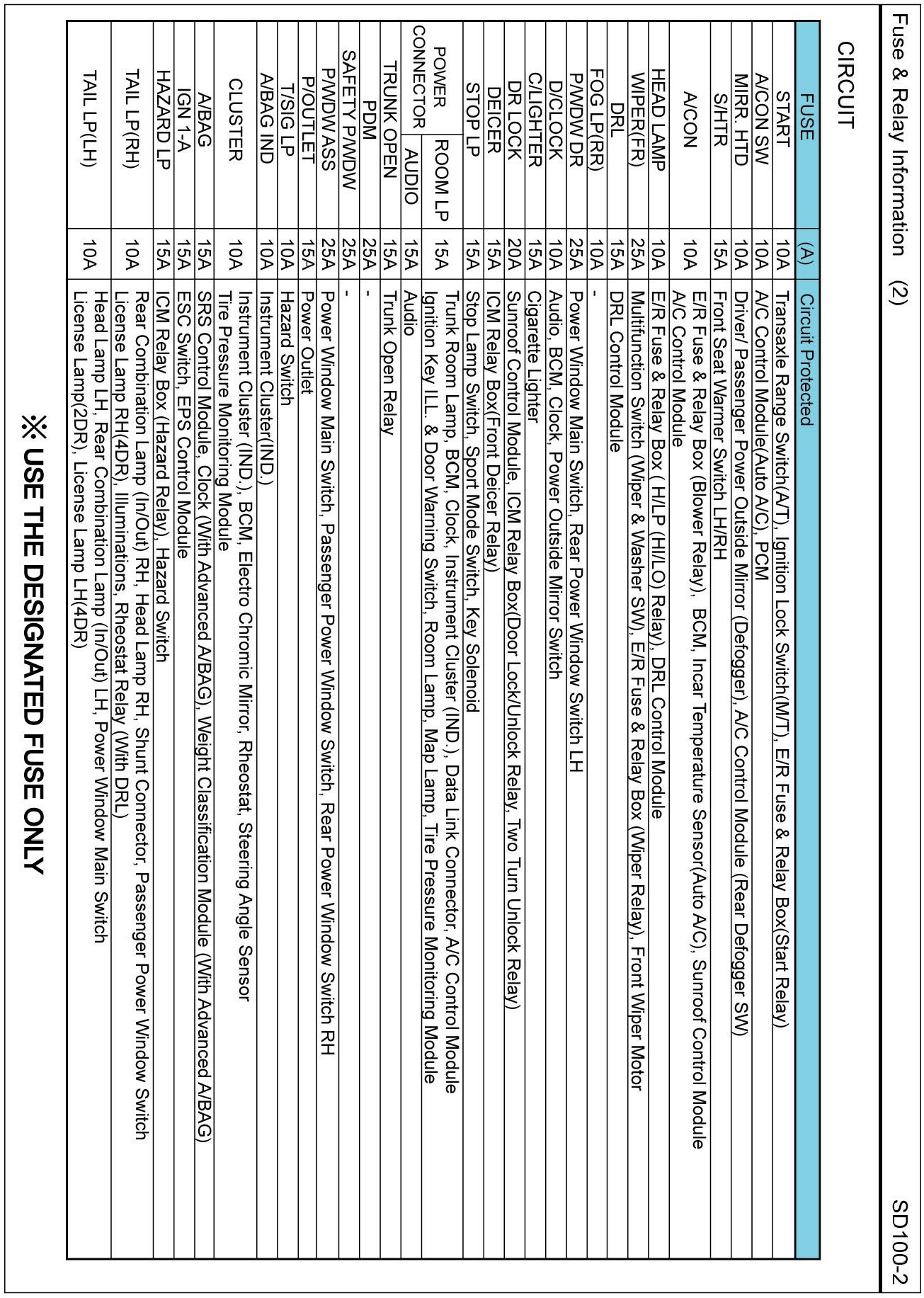

I/P Junction Box Circuit Details:




E/R Junction Box:




E/R Junction Box Circuit Details:

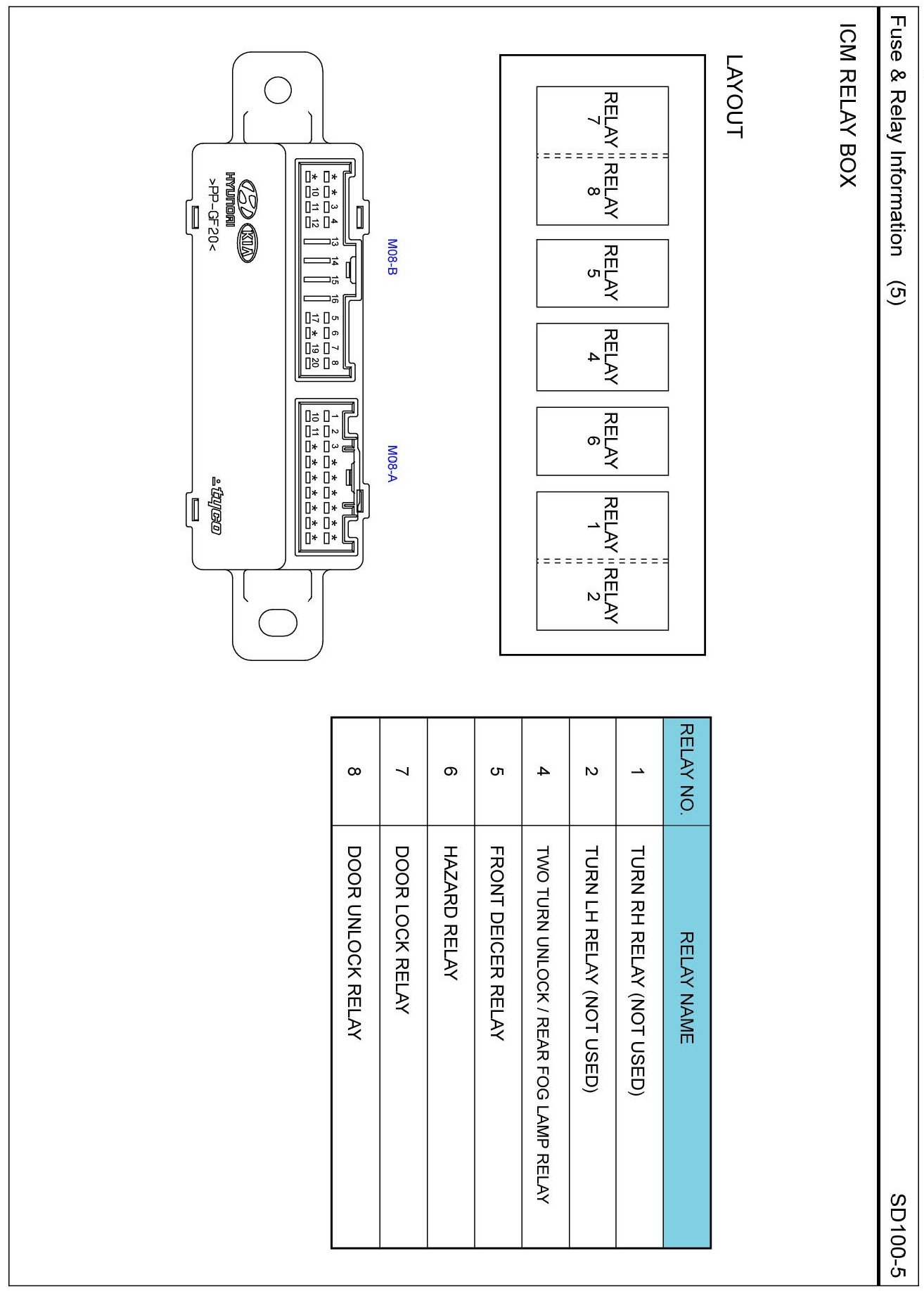

ICM Relay Box View:
