Cabin Temperature Sensor / Switch: Testing and Inspection

Inspection

1. Ignition "ON"

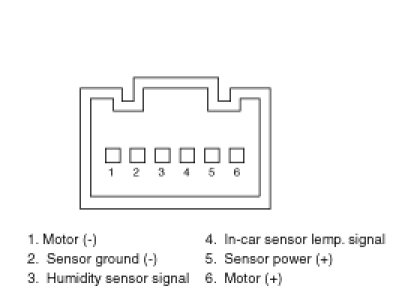

2. Blow air with changing temperature to the incar sensor air inlet. Measure sensor resistance between 2 and 4 terminals.





Specification






NOTE:
In car sensor is negative type thermistor that resistance will rise with lower temperature, and reduce with higher temperature.
