Rear Door Module

Module Assembly Replacement
1. Remove the following parts.
A. Door trim.
B. Window glass.
C. Outside handle.

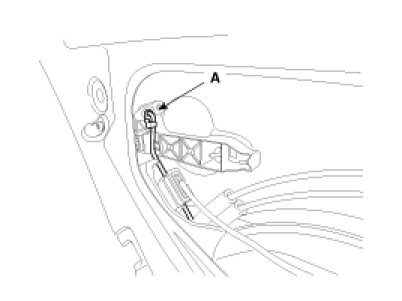

2. Disconnect the rod (A).

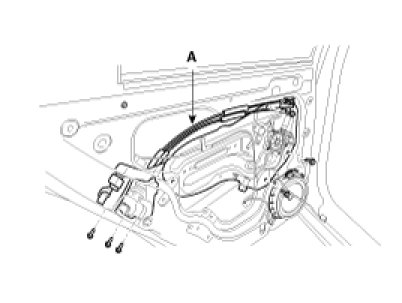

3. After loosening the door module mounting bolts, remove the door module (A).
4. Disconnect the connector.
5. Detach the clips, then remove the wiring harness.




6. Installation is the reverse of removal.

NOTE:
- The area of whole parts should be applied with sufficient grease.
- Make sure the connector is plugged in properly and each rod is connected securely.
- Make sure the door lock and open properly.
