Restraints DTC Diagnosis - Weight Classification System
>>
DTC B1322: WCS (Weight Classification System) ECU Defect
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

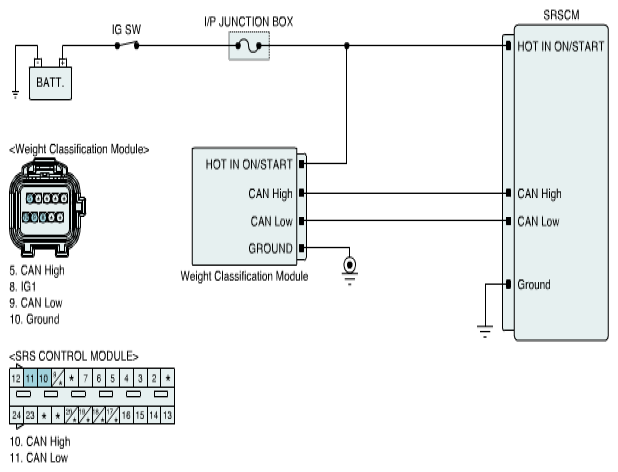

Fig 1: WCS ECU & SRSCM - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
