Repair procedures: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (For Coupe, refer to CRASH PAD . For Sedan, refer to CRASH PAD .)

  3. Remove the junction box.
  4. Check for continuity between the terminals.
  5. There should be continuity between the No. 2 in the I/P-H and No. 17 terminal in the I/P-F when power and ground are connected to the No. 2 terminal in the I/P-H and No. 17 terminal in the I/P-B.
  6. There should be no continuity between the No. 2 terminal in the I/P-H and No. 17 terminal in the I/P-F when power is disconnected.

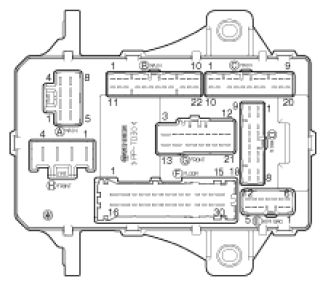

    Fig 1: Identifying Junction Box Terminals
    G06496289Courtesy of KIA MOTORS AMERICA, INC.

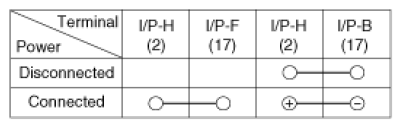

    Fig 2: Junction Box Terminals Continuity Chart
    G06496290Courtesy of KIA MOTORS AMERICA, INC.
