BCM Connectors

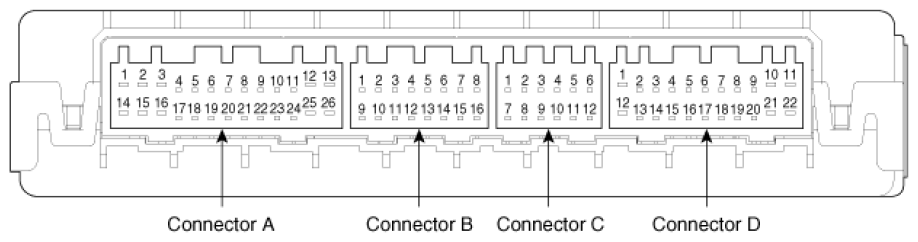

BCM CONNECTORS AND TERMINALS REFERENCE CHART
| Pin | Connector A | Connector B | Connector C | Connector D |
|---|---|---|---|---|
| 1 | B+ | RL door switch | IGN2 | Horn Relay |
| 2 | Driver door Key Lock switch | Rear Fog switch | Wiper INT switch | Tail Lamp Relay |
| 3 | Assist door Key Lock switch | Auto Light switch | - | Door Unlock State |
| 4 | Power window door Lock switch | Front Deicer switch | ACC | Defogger Relay |
| 5 | Driver door Unlock switch | Auto Light Signal | Inhibit P | Door Unlock Relay |
| 6 | RR door Unlock switch | Wiper INT Volume | Inhibit R | Trunk Release Relay |
| 7 | Assist door switch | Driver Seat Belt IND | Washer switch | Front Fog Lamp Relay |
| 8 | Trunk switch | Speed sensor | Mist switch | Power window Relay |
| 9 | Tail switch | Front Fog switch | Reserve switch | Key Solenoid |
| 10 | Crash Input | Head Lamp switch | Inhibit D | - |
| 11 | Key Interlock switch | Driver Seat Belt switch | Inhibit N | Auto Light State |
| 12 | CAN H | Defogger switch | Stop switch | Hazard Relay |
| 13 | CAN L | Auto light GND | GND | |
| 14 | A IGN1 | ALT L | Front Deicer Relay | |
| 15 | Driver door Key Unlock switch | K Line | Door Lock Relay | |
| 16 | Assist door Key Unlock switch | Code Save | Driver door Unlock Relay | |
| 17 | Power window door Unlock switch | Rear Fog Lamp Relay | ||
| 18 | Assist door Unlock switch | Key Hole Illumination Lamp | ||
| 19 | Driver door switch | Head Lamp Low Relay | ||
| 20 | RR door switch | Wiper Relay | ||
| 21 | Trunk Release switch | ATM Solenoid | ||
| 22 | Key In switch | - | ||
| 23 | Start Stop Button | |||
| 24 | Head Lamp High switch | |||
| 25 | - | |||
| 26 | GND |
