Repair procedures: Removal

  1. Remove the battery terminal.
  2. Remove the battery and battery tray.
  3. Remove the air duct.
  4. Remove the air cleaner assembly. (Refer to AUTOMATIC TRANSAXLE SYSTEM - A5CF2 )

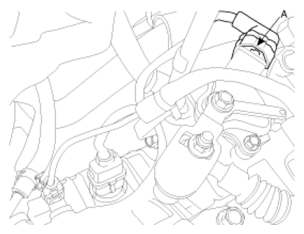

  5. Disconnect the inhibitor switch connector (A).
    Fig 1: Identifying Inhibitor Switch Connector
    G06494651Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the control cable (A) from the manual control lever.
    Fig 2: Identifying Control Cable
    G06494652Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the inhibitor switch and manual control lever.
