Trunk / Liftgate Lock Cylinder: Service and Repair

Replacement

Key Holder Replacement
1. Remove the trunk lid trim.

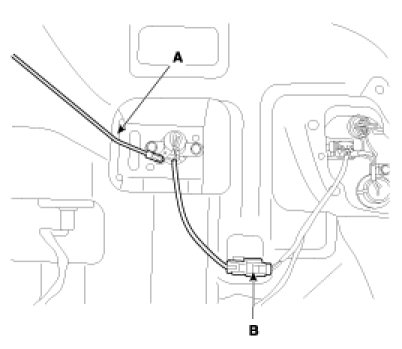

2. Disconnect the rod (A) and connector (B).

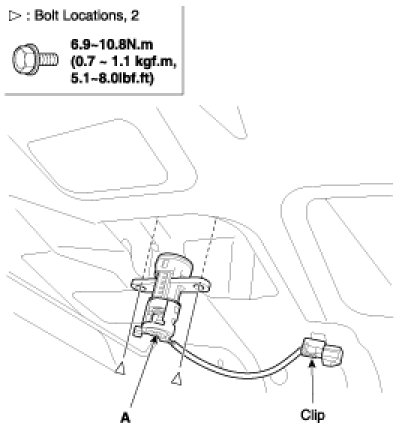

3. Loosen the key holder mounting bolt and remove (A).




4. Installation is the reverse of removal.
