Relay Box: Application and ID

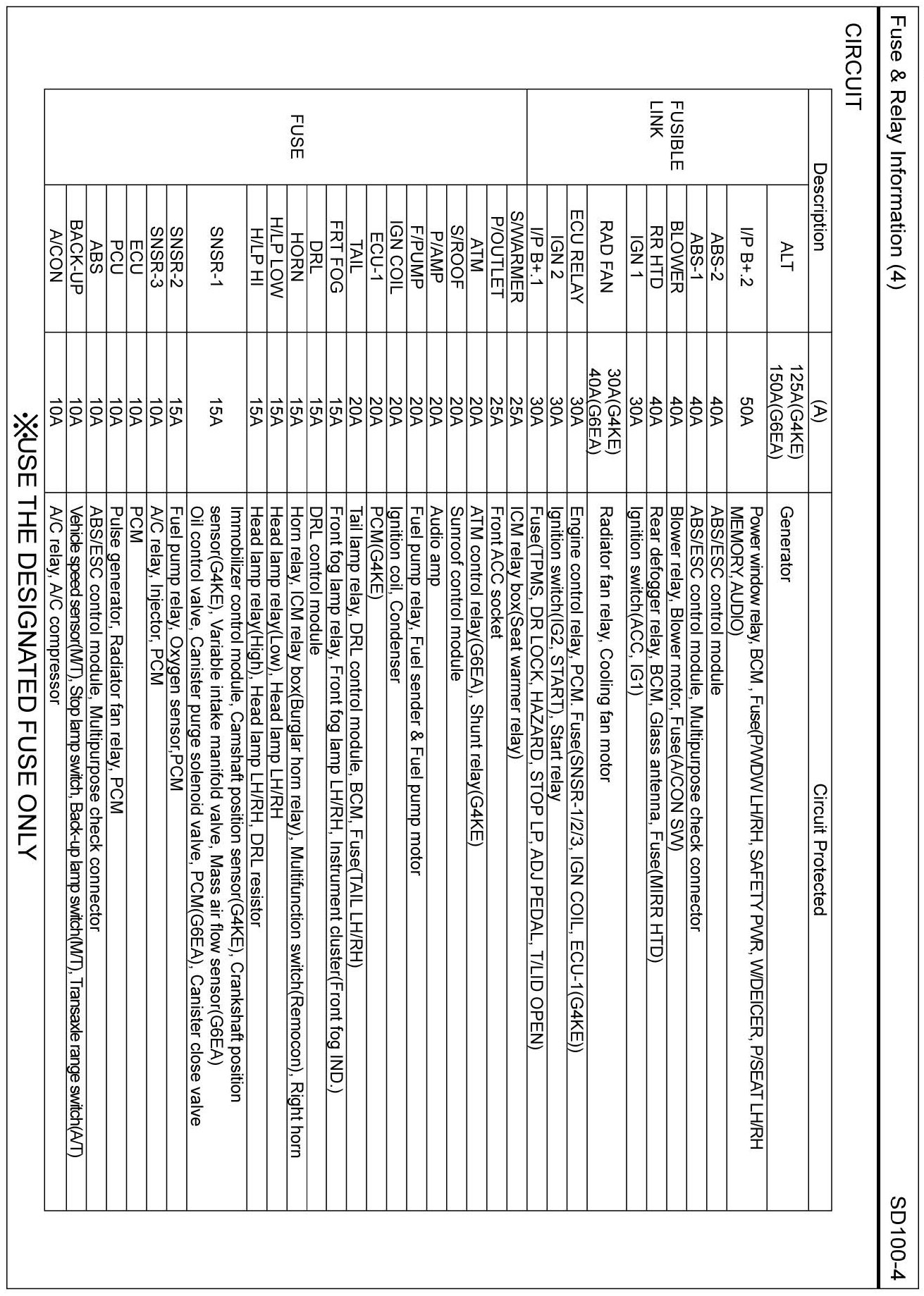

Fuse and Relay Information

I/P Junction Box Layout View:

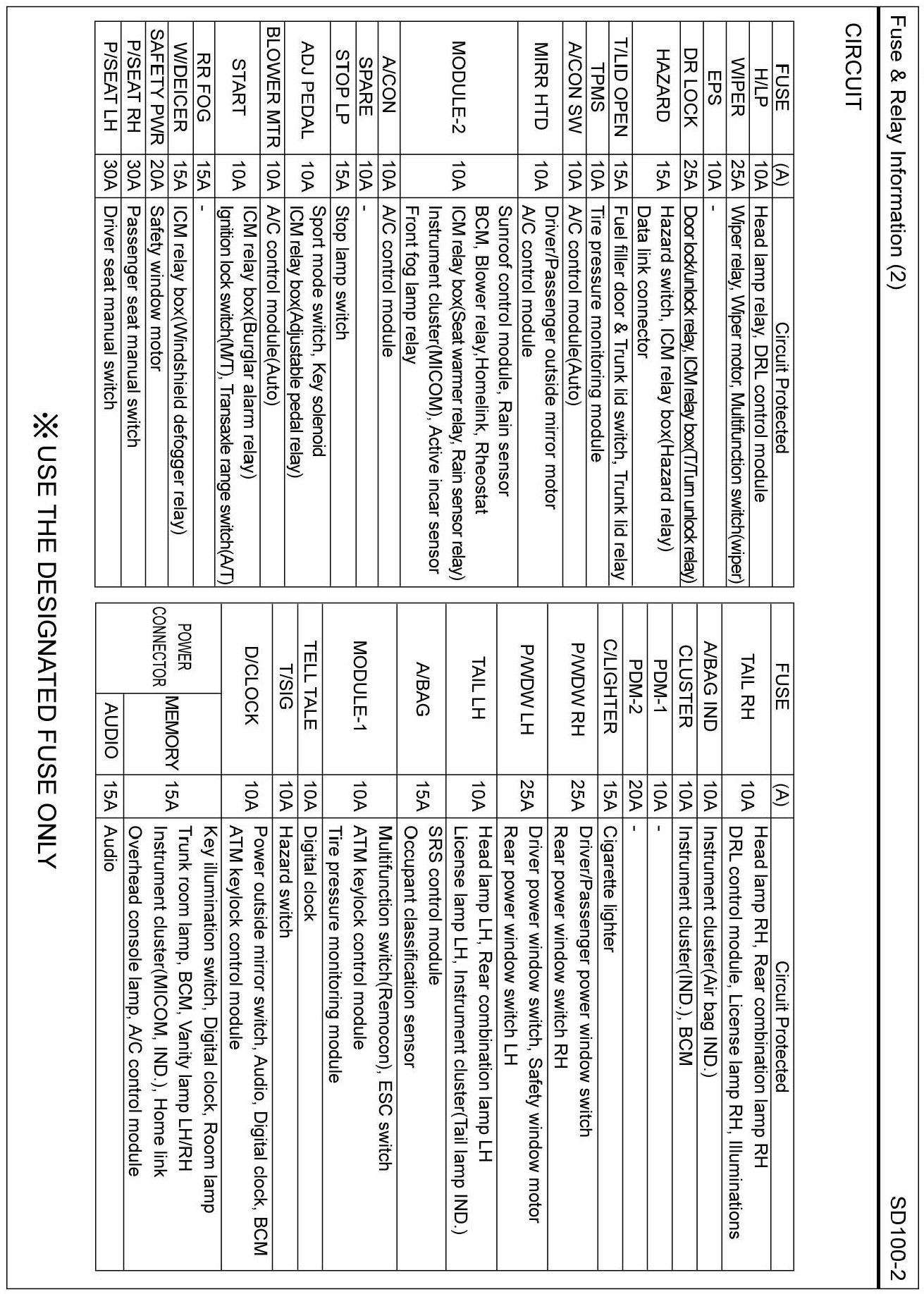

I/P Junction Box Circuit:




E/R Junction Box Layout View:




E/R Junction Box Circuit:

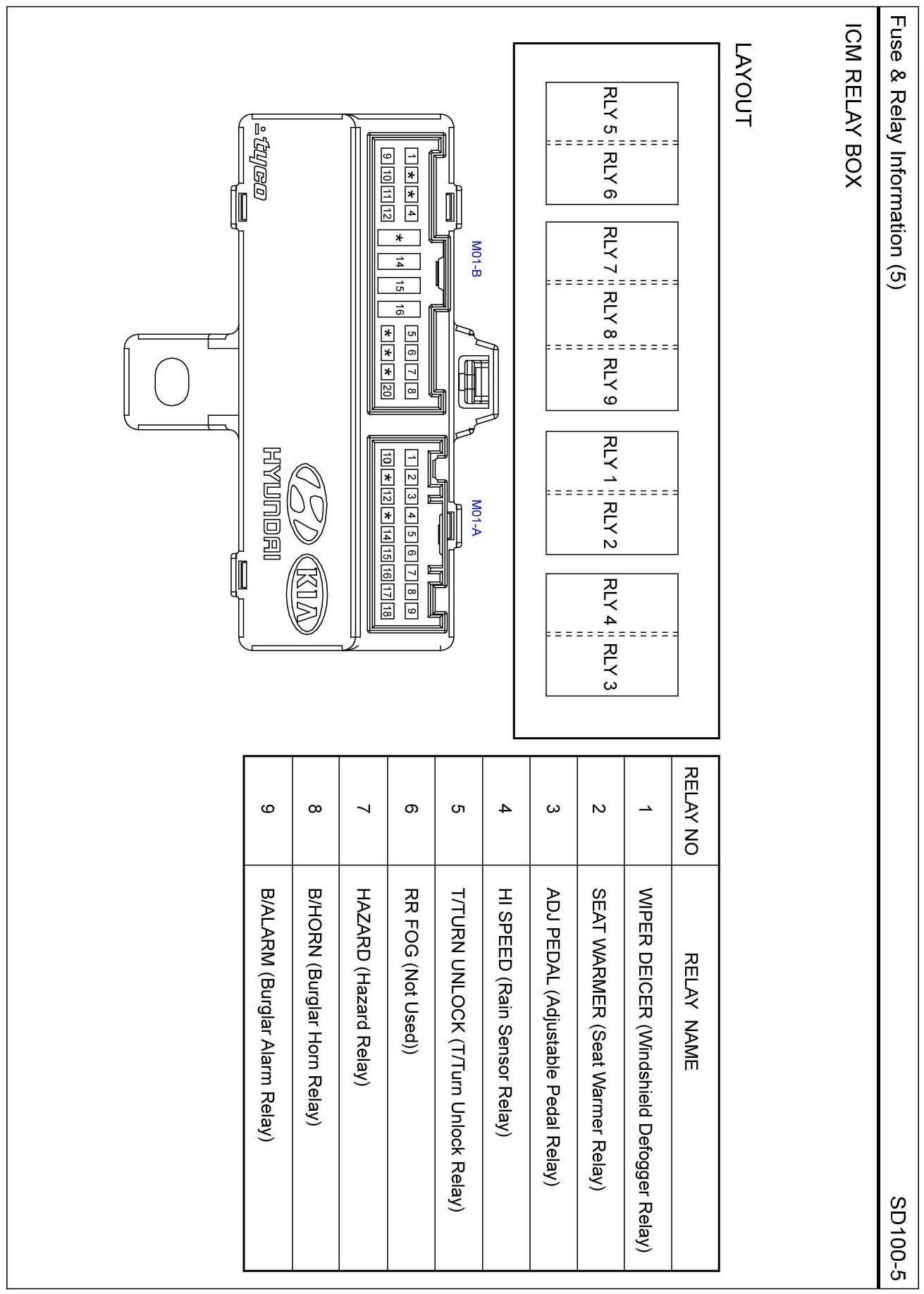

ICM Relay Box Layout:
