Multifunction Switch

Inspection

Wiper And Washer Switch Inspection

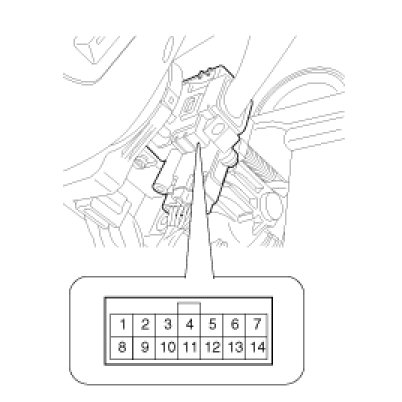

With the multi function switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multi-function switch.

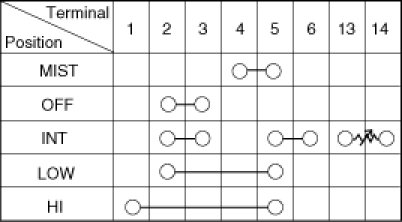

Wiper Switch





Washer Switch
