System
>>
Engine Control System Diagnosis (1 Of 2)
>>
DTC P0133: O2 Sensor Circuit Slow Response (Sensor1)
>>
General Information
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

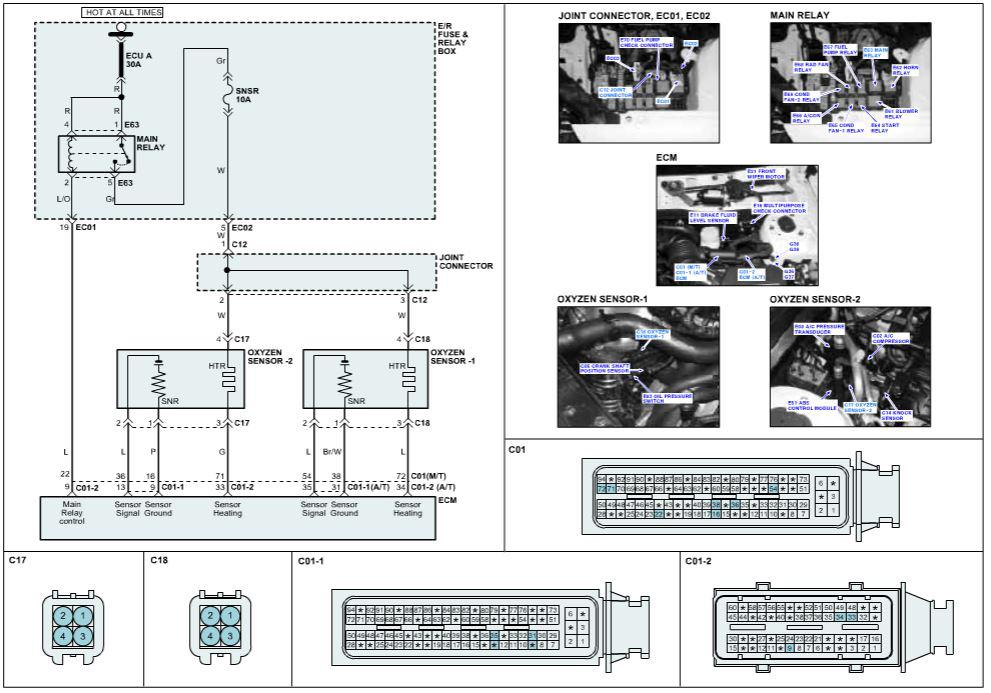

Fig 1: Heated Oxygen Sensor - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
