Monitor Scantool Data
- Connect scantool to Data Link Connector (DLC).
- IG "ON".

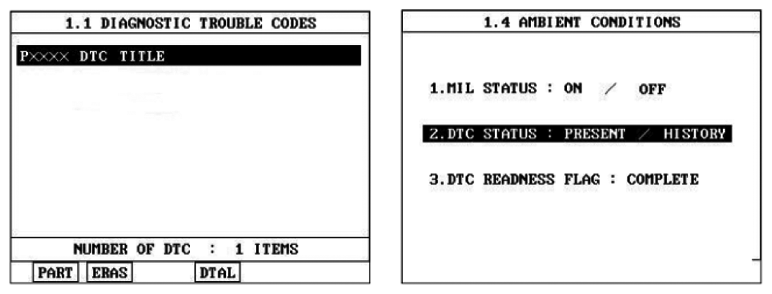

- Select "Diagnostic Trouble Codes (DTCs)" mode, and then Press F4 (DTAL) to check DTC's information from the DTCs menu
- Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions noted in the DTC detecting condition.
- Read "DTC Status" parameter.
- Is parameter displayed "History (Not Present) fault"?CAUTION:
- History fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.
YES
- Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL & CONNECTOR INSPECTION " procedure
