Components and Components Location: Replacement: Notes

NOTE:
  • When removing and installing the trunk lid, an assistant is necessary.
  • Wear gloves to protect hands from injury.
  1. Disconnect the key holder connector (A) license plate lamp connector (B) then remove the wiring harness from trunk lid.
  2. Loosen the trunk lid mounting bolt, then remove the trunk lid (C).
  3. Installation is the reverse of removal.

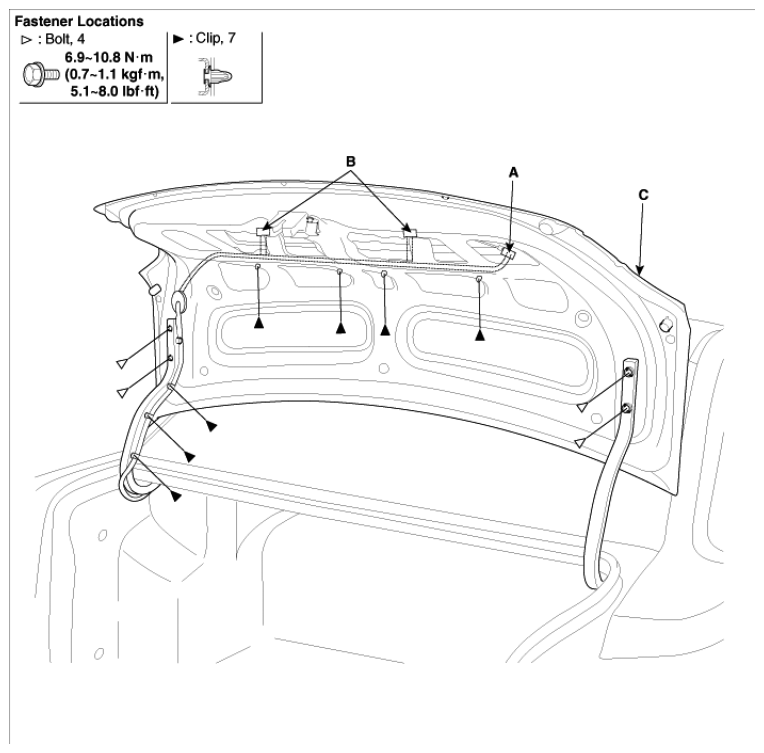

    Fig 1: Identifying Key Holder Connector, License Plate Lamp Connector And Trunk Lid With Bolts And Clips
    G06829398Courtesy of KIA MOTORS AMERICA, INC.
