Engine Control System Diagnosis (3 Of 3)
>>
DTC P0564: Cruise Control Multi-Function Input A Circuit
>>
General Information
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

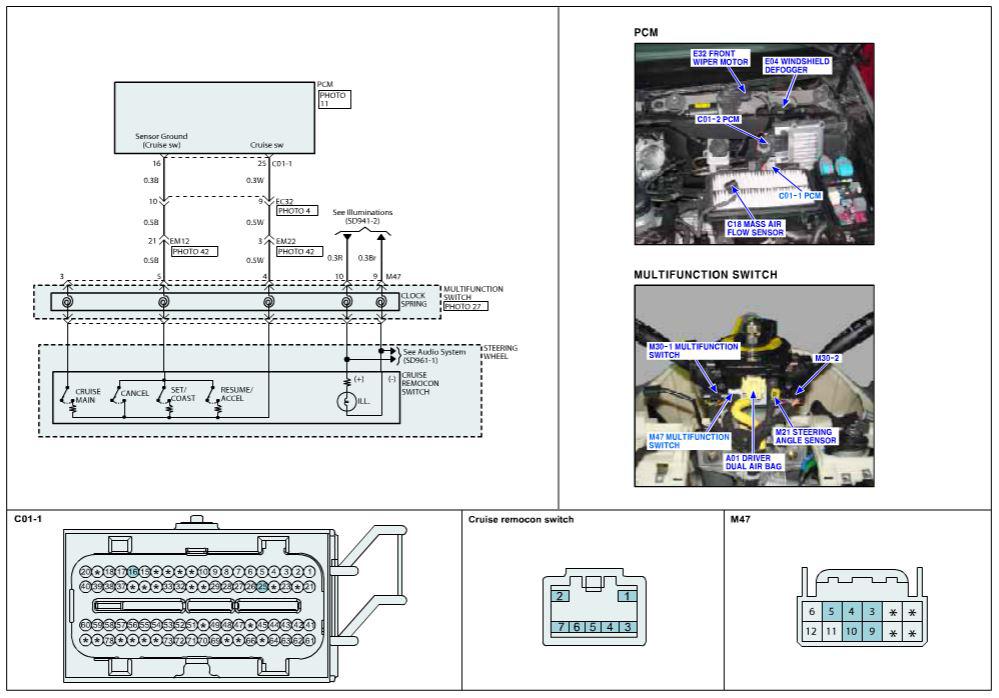

Fig 1: Cruise Control Multi-Function Input A Circuit - Schematic Diagram
Courtesy of KIA MOTORS AMERICA, INC.
