Monitor Scantool Data

Connect scantool to DLC (Data Link Connector)
Warm up the engine to normal operating temperature.
Monitor "Main Relay" parameter on scantool.

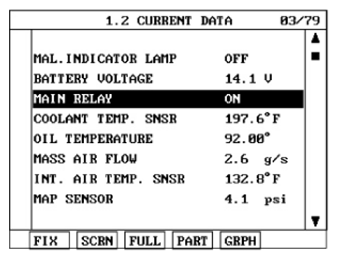

Fig 1: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
Is the "Main Relay" parameter displayed correctly?
YES
- Fault is intermittent caused by poor contact in Sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
