Monitor Scantool Data
- Connect scantool to DLC (Data Link Connector)
- Warm-up the engine to normal operating temperature.

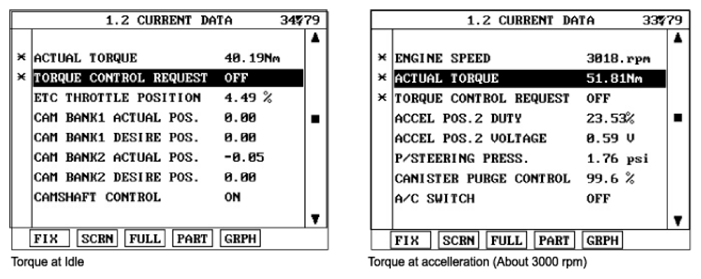

- Monitor "Actual Torque & Torque Request" parameters on scantool
- Monitor DTC related to "ETS or CAM" on scantool
- Are there any DTC related to "ETS" or "CAM" on the scantool?
YES
- Repair "ETS" or "CAM" system first, then, go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
