Home >> Kia >> 2010 >> Sedona Base >> Repair and Diagnosis >> Restraints >> Passive Restraints >> General Information - Restraint >> Components and Components Location >> Components >> Notes

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Components and Components Location: Components: Notes

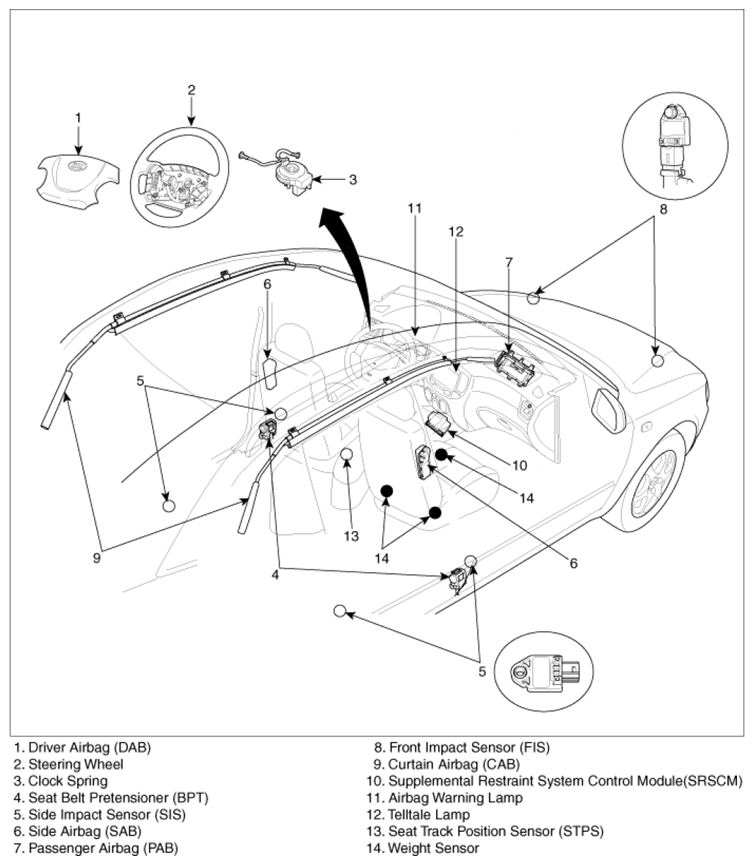

Fig 1: Identifying SRS System Components

G06843886

Courtesy of KIA MOTORS AMERICA, INC.
