Engine Electrical System: Component

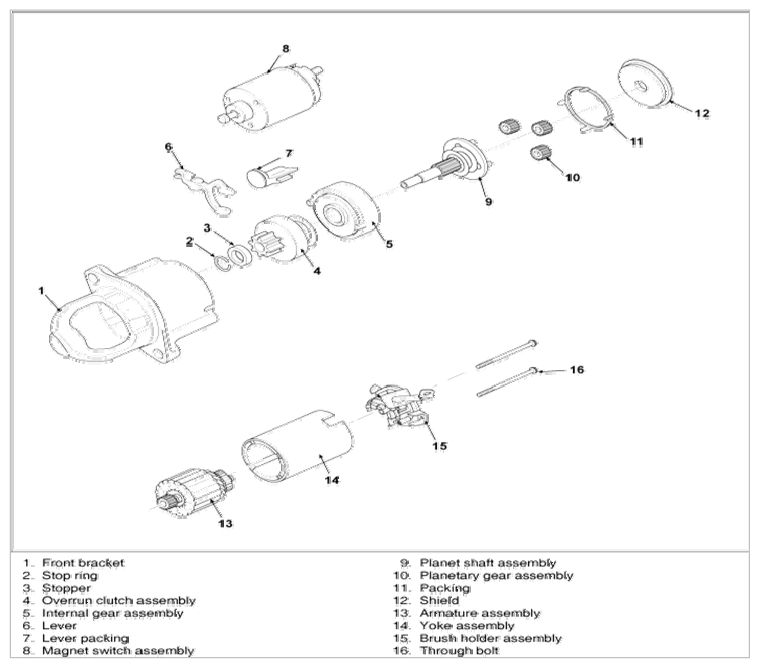

Fig 1: Identifying Starter Components

G06837984

Courtesy of KIA MOTORS AMERICA, INC.
