Automatic Transaxle System
>>
Automatic Transaxle
>>
Components and Components Location
>>
Components (1)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components (1)

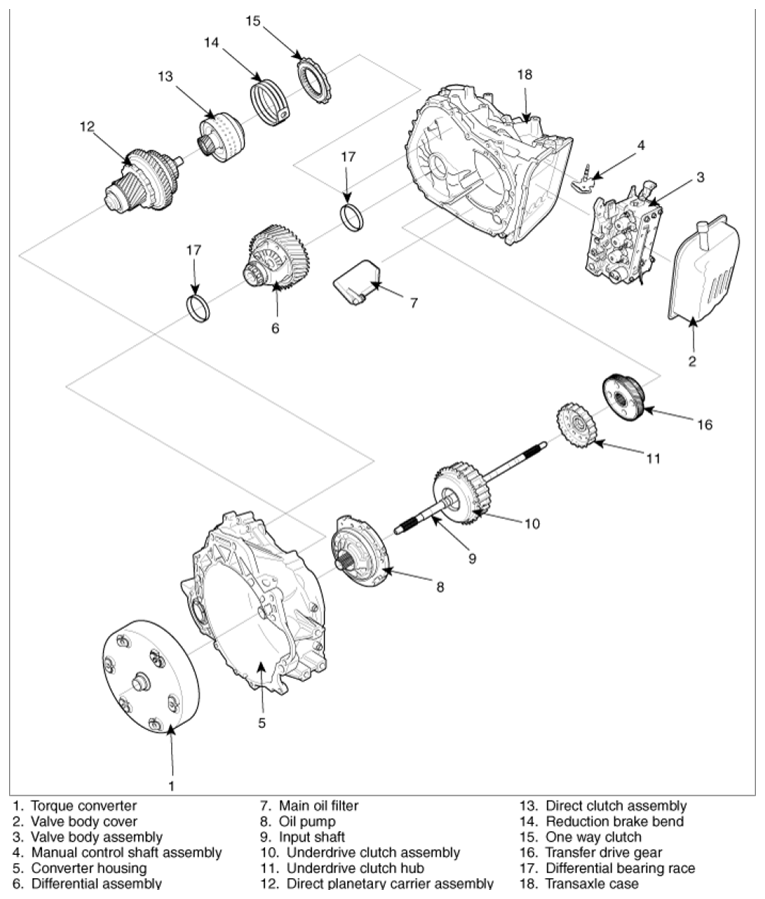

Fig 1: Exploded View Of Automatic Transaxle System (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

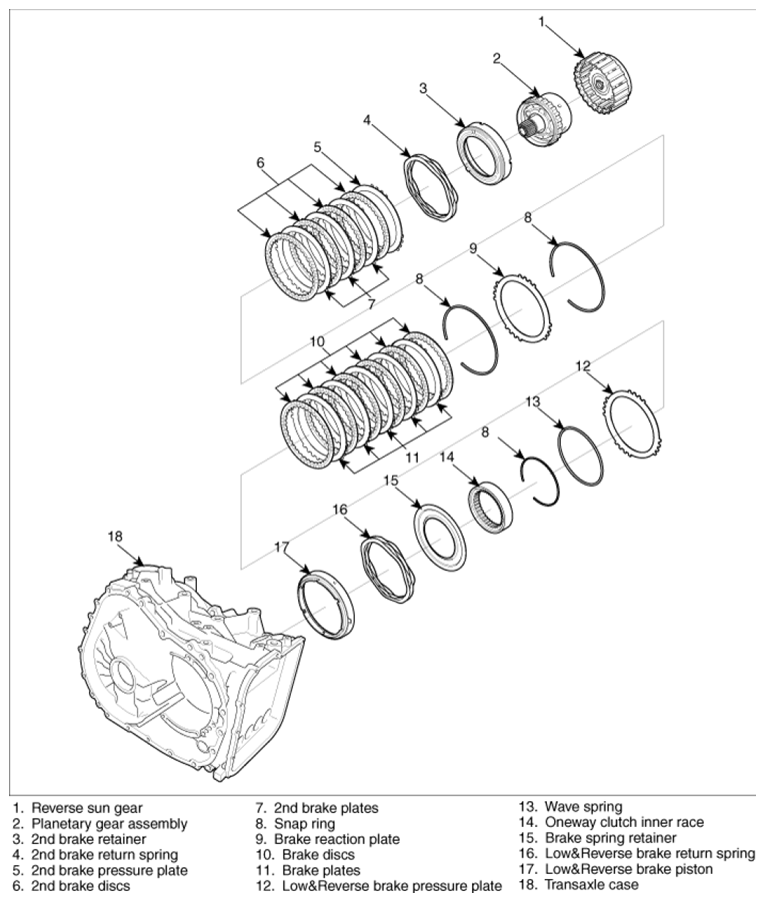

Fig 2: Exploded View Of Automatic Transaxle System (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
