Components and Components Location: Components

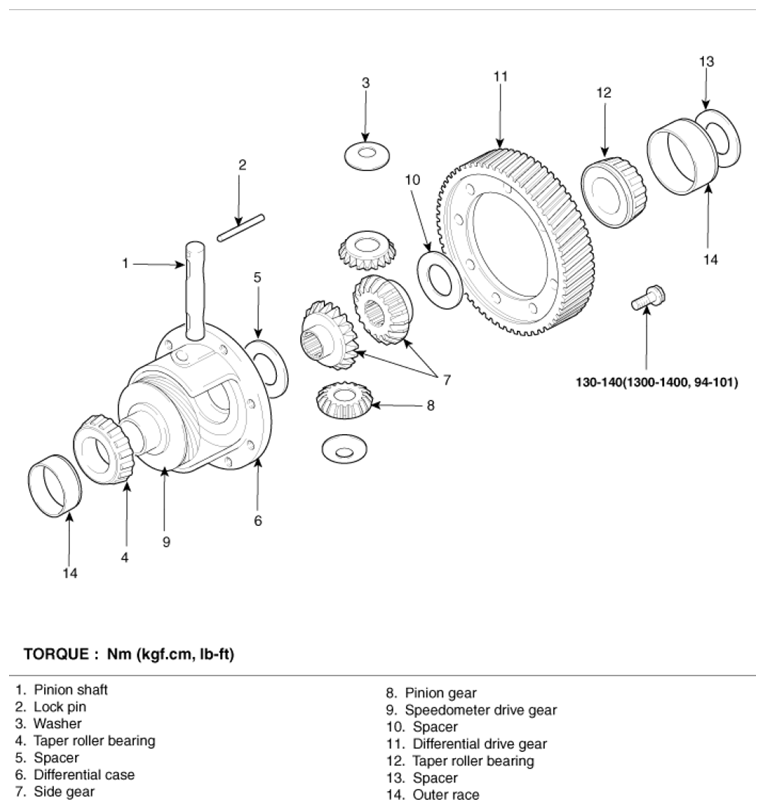

Fig 1: Exploded View Of Differential With Torque Specification
G06799254Courtesy of KIA MOTORS AMERICA, INC.
