SMART KEY PROGRAMMING PROCEDURES WHEN BOTH SMART KEYS ARE LOST
TECHNICAL SERVICE BULLETIN
Reference Number(s): GENERAL INFO. 048, Date of Issue:
January, 2011
| KIA: | All Models |
| GROUP: | GEN |
SERVICE INFORMATION

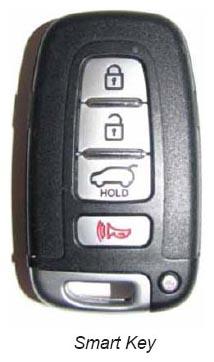

This bulletin provides programming information for vehicles for which both Smart Keys are missing. Without a Smart Key the vehicle will not power up. Please follow the programming procedure outlined in this bulletin when replacing both Smart Keys.
NOTE:
If it is determined that a customer has lost both Smart Keys, then the customer will be responsible for the cost of replacement Smart Keys.
PROGRAMMING PROCEDURE

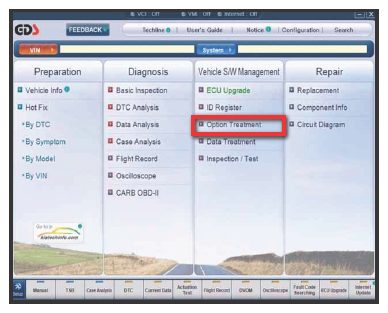

- Connect GDS to vehicle and select Option Treatment.

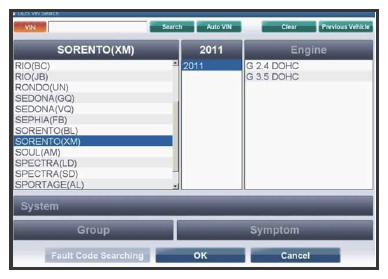

- Select Vehicle
, then Year
, and then Engine
.
The screen shown on the right is for demonstrative purposes only, and will vary depending on model.

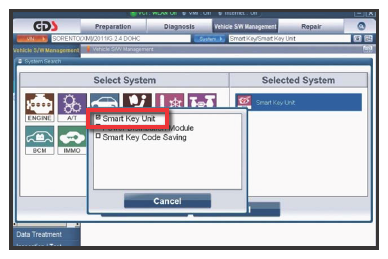

- Select PIC
for the system, and then the Smart Key Unit
.
Press OK .

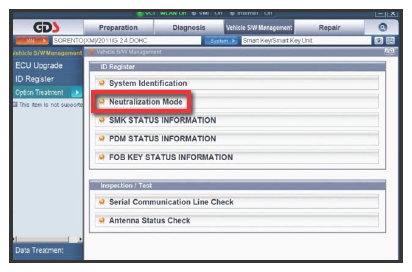

- Select Neutralization Mode
.

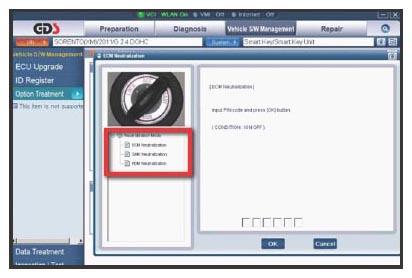

- Neutralize all three modules. PIN codes must be entered, (PIN codes can be found on KGIS).

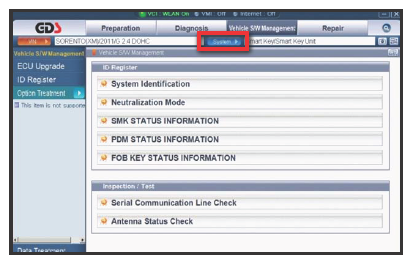

- Once all three modules have been neutralized, select System
to change to PIC System Code Saving
.

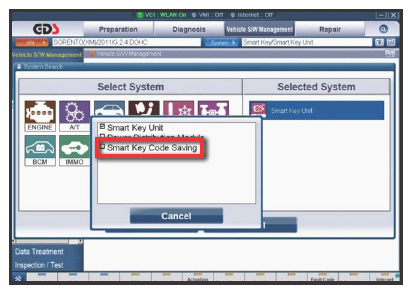

- Select PIC
, and then select Smart Key Code Saving
.
- Insert a NEW
Smart Key into the holder in the center armrest as per the on screen prompt.

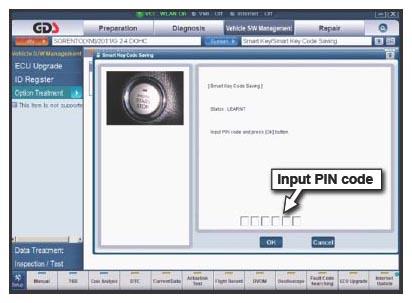

Input the PIN code.
Press OK.
Repeat step 8 for the second Smart Key Input PIN code
NOTE: Only 2 Smart Keys can be programmed per vehicle.
