Water Pump

Water Pump

Install the water pump.

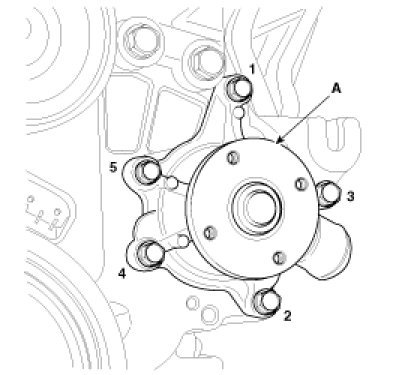

(1) Install the water pump(A) and a new gasket with the bolts.
Tighten the bolts with the order blow.

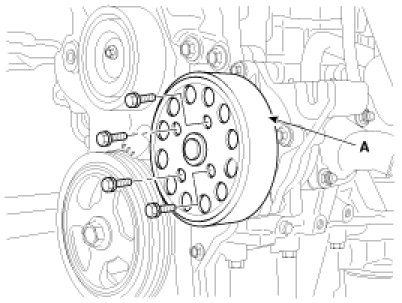

(2) Install the water pump pulley(A) with the four bolts.

Tightening torque 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)





CAUTION:
Tighten the bolts diagonally.
