Front Door Window Regulator: Service and Repair

Replacements

Door Module Assembly Replacement
1. Remove the following parts.
A. Door trim
B. Window glass
2. Loosen the rear channel mounting nuts.

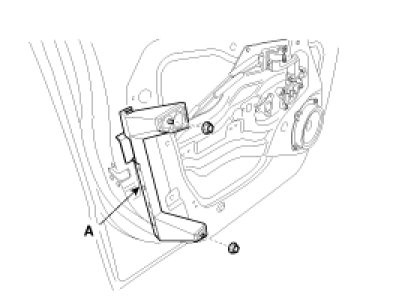

3. After disconnecting the glass molding, remove the rear channel (A).

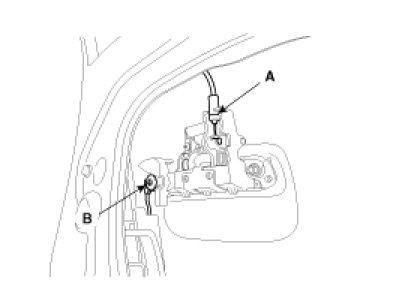

4. Disconnect the outside cable (A) and lock rod (B).

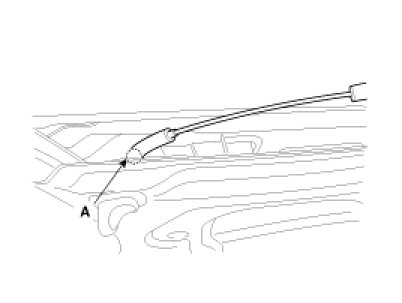

5. Disconnect the clip (A).

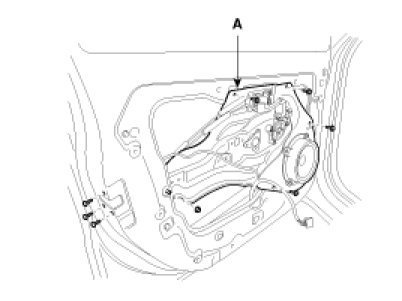

6. Loosen the door module mounting bolts, remove the door module (A).
7. Disconnect the connector.
8. Disconnect the door module wiring harness, remove the module assembly.




9. Installation is the reverse of removal.

NOTE:
- The area of whole parts should be applied with sufficient grease.
- Make sure the connector are connected properly and each rod is connected securely.
- Make sure door lock operates and door open/close properly.
