Front Fender: Service and Repair

Replacement

NOTE:
- Be careful not to damage the hood and body.
- When removing the clips, use a clip remover.

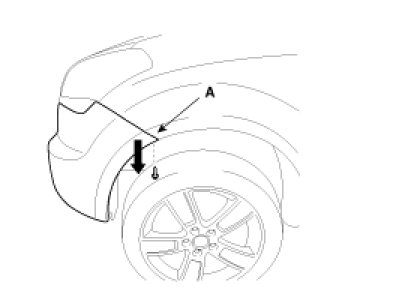

1. Remove the front bumper mounting screw (A).




2. Loose the mud guard mounting screws.

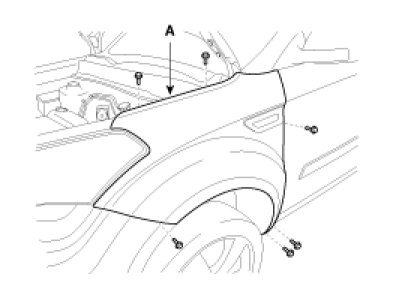

3. After loosening the fender mounting bolts, remove the fender (A).




4. Installation is the reverse of removal.
