Heater Core: Service and Repair

Replacement

1. Remove the crash pad lower panel. Dashboard / Instrument Panel

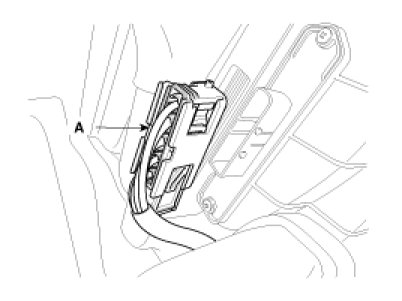

2. Disconnect the PTC connector(A).

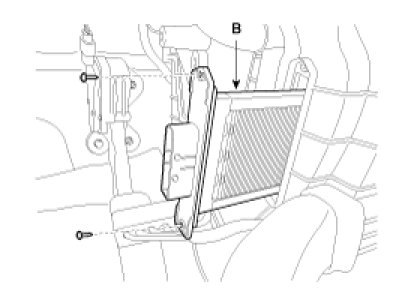

3. Loosen the mount screw and then remove the PTC heater(B).




4. Installation is the reverse order of removal.
