Components and Components Location: Components

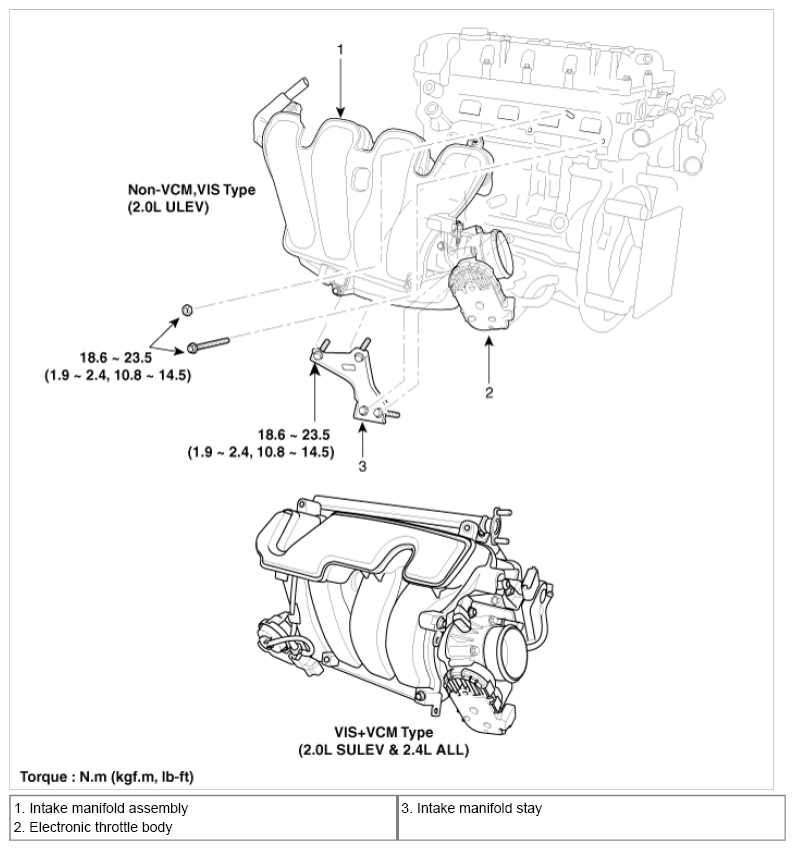

Fig 1: Intake Manifold Components With Torque Specifications
G07367627Courtesy of KIA MOTORS AMERICA, INC.
