Variant Coding

  1. Connect GDS to Data Link Connector (DLC).
  2. IG "ON"
  3. Using GDS, Perform Variant coding program. Refer to Fig 1
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON
  6. Go to COMPONENT INSPECTION  procedure.

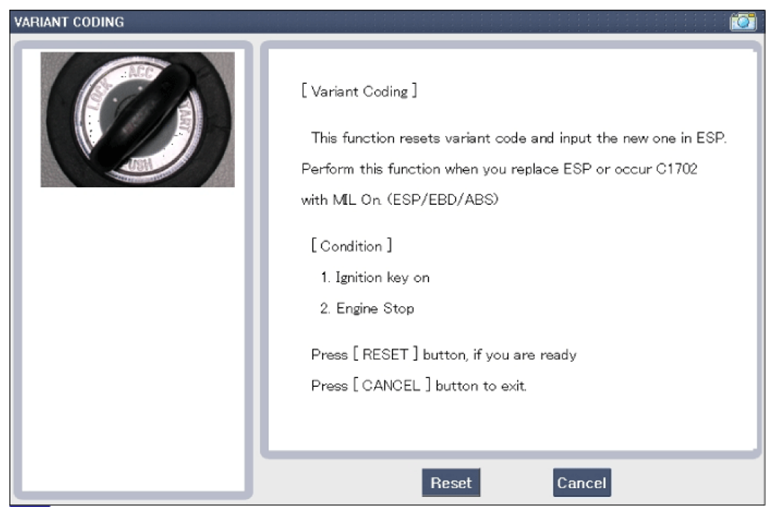

    Fig 1: Performing Variant Coding Program
    G07384879Courtesy of KIA MOTORS AMERICA, INC.
