Components and Components Location: Components

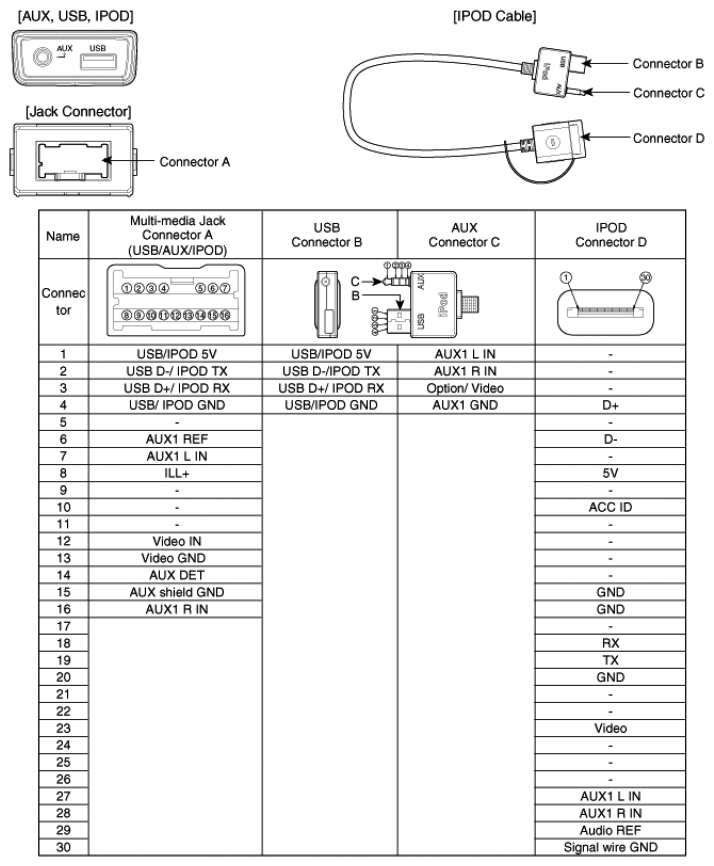

Fig 1: Identifying Multimedia Jack Components Location
G06829566Courtesy of KIA MOTORS AMERICA, INC.
