Components and Components Location: Component

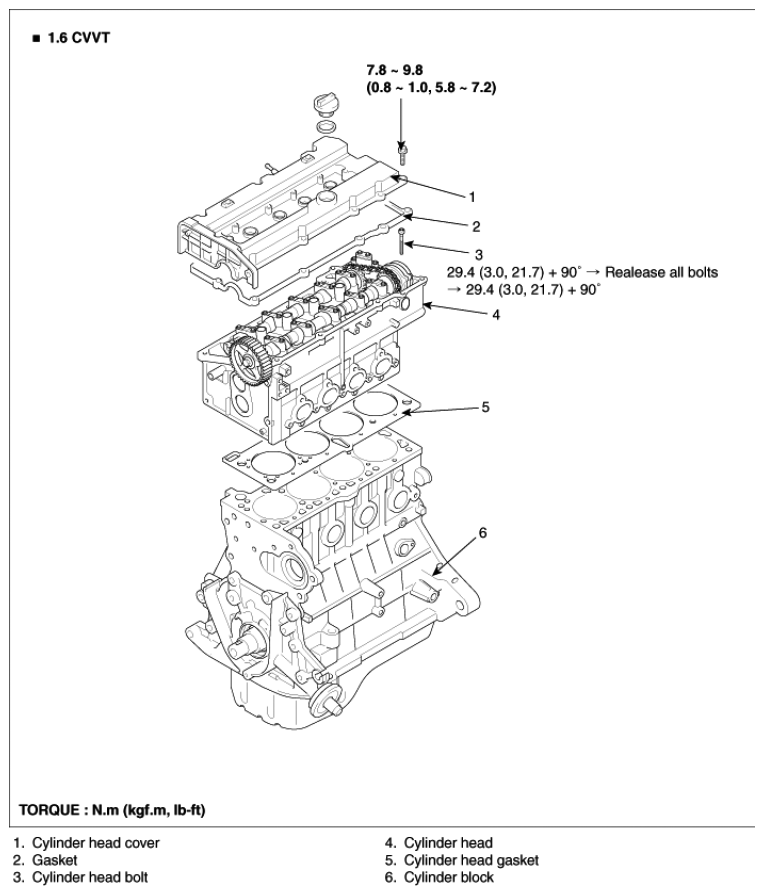

Fig 1: Cylinder Head Assembly Replacement Components With Torque Specifications (1 Of 2)
G06828476Courtesy of KIA MOTORS AMERICA, INC.

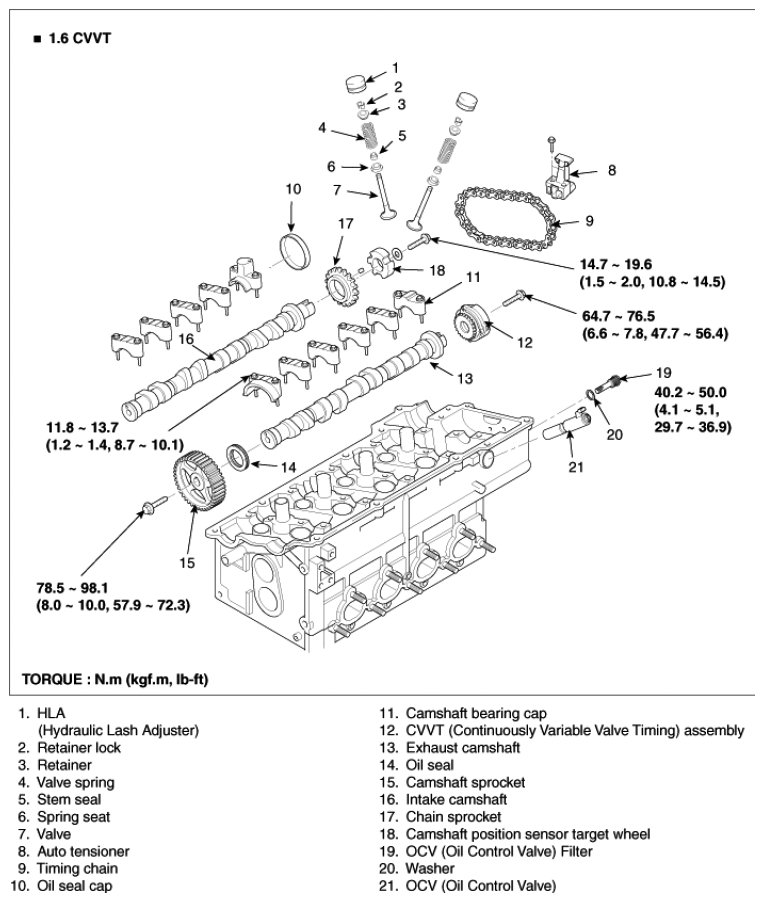

Fig 2: Cylinder Head Assembly Replacement Components With Torque Specifications (2 Of 2)
G06828477Courtesy of KIA MOTORS AMERICA, INC.
