Component and Components Location: Components

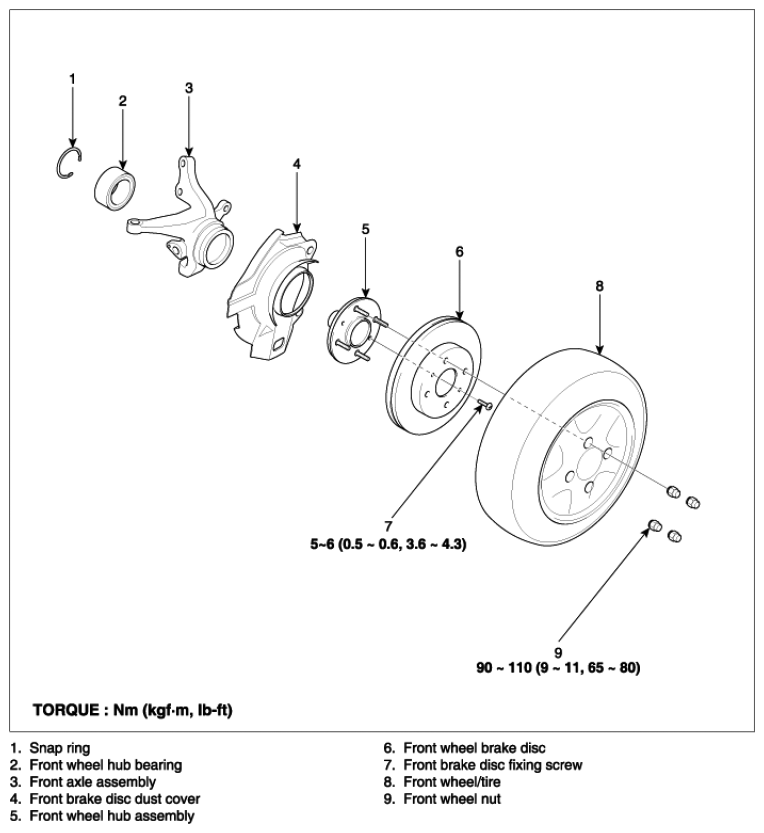

Fig 1: Front Axle Hub Replacement Components With Torque Specifications
G06831981Courtesy of KIA MOTORS AMERICA, INC.
