Monitor Scantool Data

Connect scantool to data link connector (DLC)
Engine "ON".
Monitor the "INPUT SPEED SENSOR" parameter on the scantool
Driving at speed of over 19 Mile (30 km)/h
1. Specification : Increasing Gradually

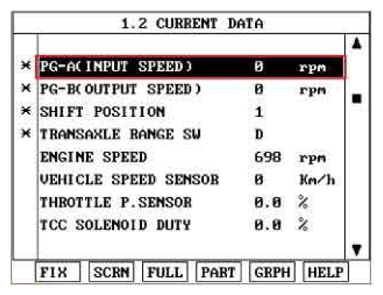

  Fig 1: Monitoring Input Speed Sensor Parameter On Scantool - D Range
  Courtesy of KIA MOTORS AMERICA, INC.

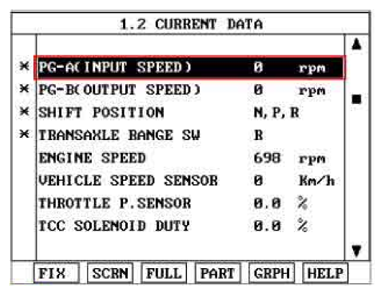

  Fig 2: Monitoring Input Speed Sensor Parameter On Scantool - R Range
  Courtesy of KIA MOTORS AMERICA, INC.

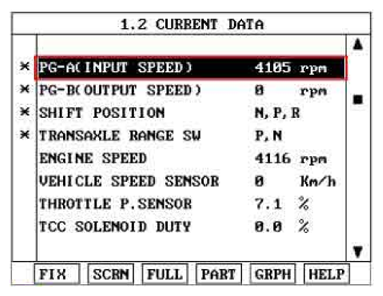

  Fig 3: Monitoring Input Speed Sensor Parameter On Scantool - Acceleration Status
  Courtesy of KIA MOTORS AMERICA, INC.

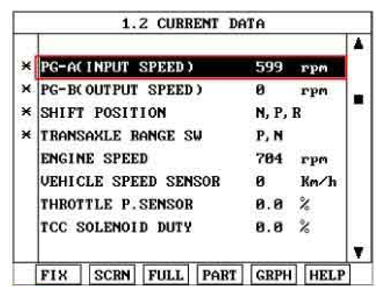

  Fig 4: Monitoring Input Speed Sensor Parameter On Scantool - Idle Status
  Courtesy of KIA MOTORS AMERICA, INC.
Does "INPUT SPEED SENSOR (PG-A)" follow the reference data?
YES
1. Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
NO
1. Go to "W/HARNESS INSPECTION " procedure
