Floor Console Replacement

NOTE:

When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

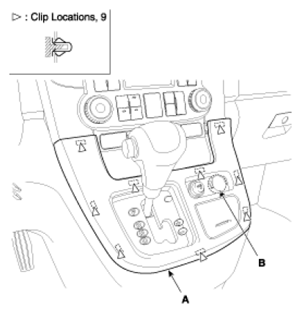

After the center cover is removed (A), disconnect the connector (B).

Fig 1: Center Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the following items.
1. Crash pad lower panel
2. Lower bracket
3. Glove box
4. Console side cover

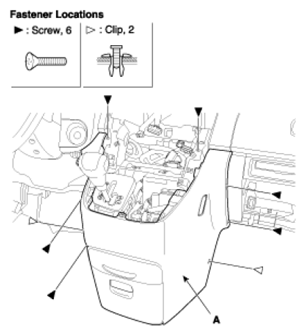

After loosening the console mounting screw, remove the front console (A).

Fig 2: Front Console
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
