Trouble Diagnostics When Using GDS

The IPM can be diagnosed by using the GDS. The BCM communicates with the GDS which then displays inputs and outputs along with codes.
To diagnose the IPM function, select the vehicle model and IPM.

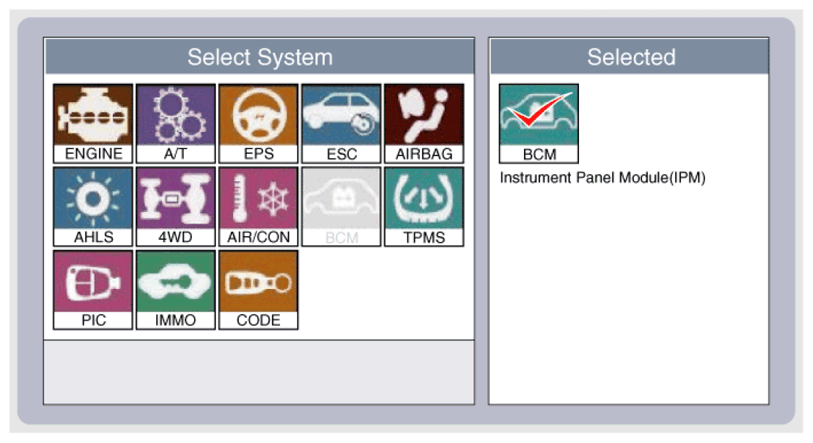

Fig 1: Scantool Display - IPM
Courtesy of KIA MOTORS AMERICA, INC.
To view the input/out value of IPM, use the GDS to check "Current DATA". It provides information of IPM input/output conditions of power supply, turn signal/brake lamp, headlamp, door locks, outside mirror, wiper, auto-light and trans etc.

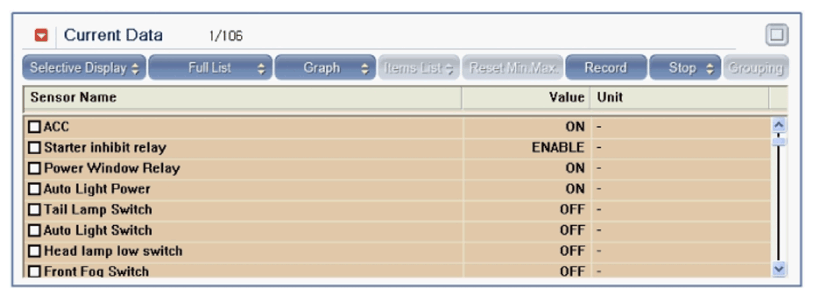

Fig 2: Scantool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.
To perform functional test on IPM outputs, select "Actuation Test"

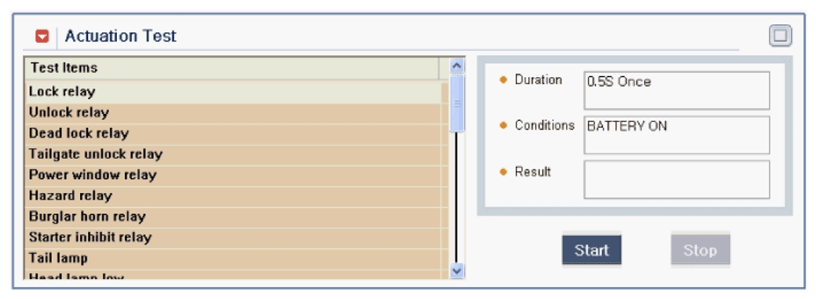

Fig 3: Scantool Display - IPM OUTPUTS On Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.

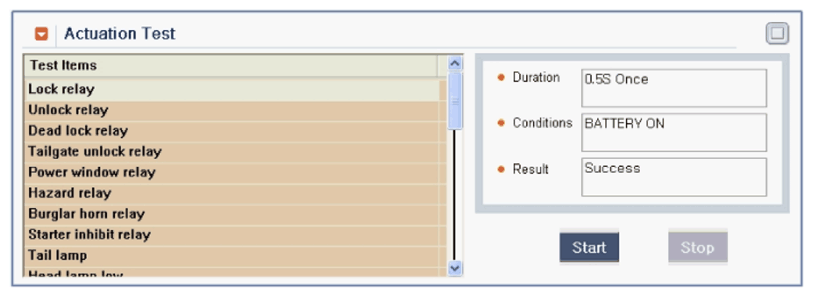

Fig 4: Scantool Display - IPM OUTPUTS On Actuation Test (Success)
Courtesy of KIA MOTORS AMERICA, INC.
