Components and Components Location: Components

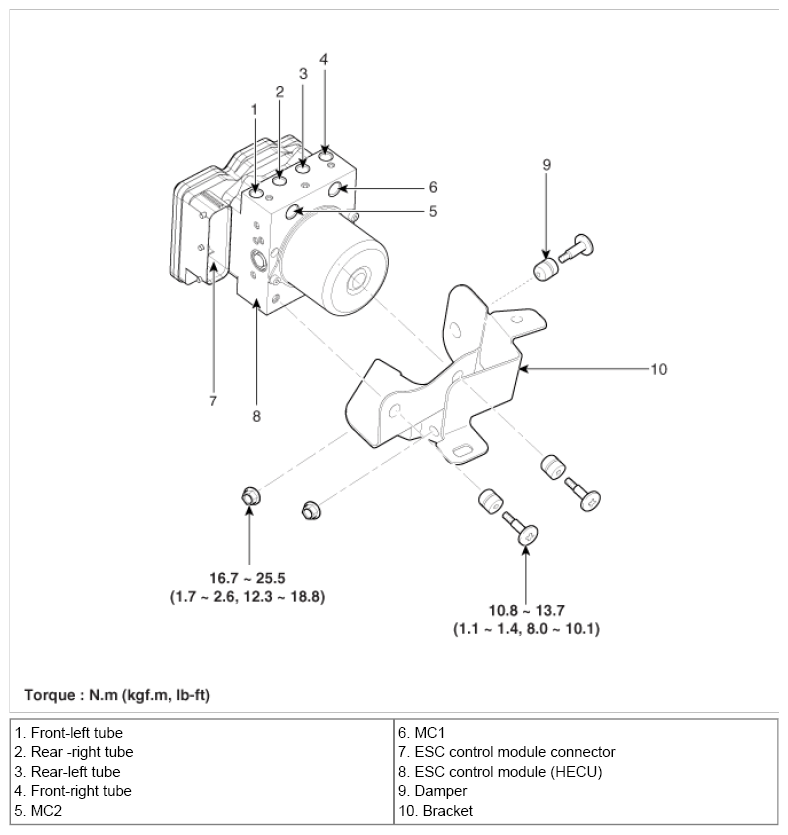

Fig 1: Exploded View Of ESC Control Module With Torque Specifications
G07416083Courtesy of KIA MOTORS AMERICA, INC.
