IGN key hole Illumination Control

  1. If driver door open switch ON or assist door open switch ON with IGN1 OFF, turn ON key hole illumination.
  2. In case of driver door open switch OFF or assist door open switch OFF with the condition (1) above, turn ON key hole illumination for 30 seconds, and then OFF the lighting.
  3. Turn OFF key hole illumination on activating IGN1 switch in case of (1) and (2) above. However, key hole illumination light should be immediately OFF if ARM WAIT or ARM or ALARM or REARM activation.

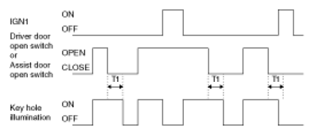

    Fig 1: IGN Key Timing Pattern
    G07416790Courtesy of KIA MOTORS AMERICA, INC.

    T1 : 30±1sec
