FOB Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "FOB KEY STATUS INFO".

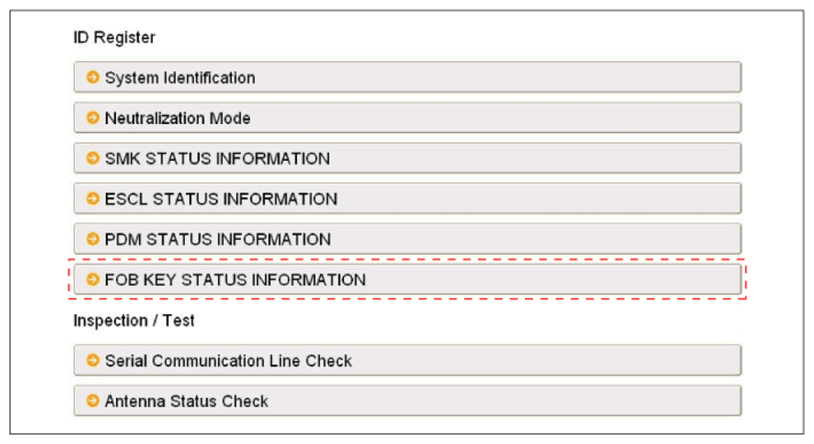

Fig 1: Scantool Display - FOB KEY STATUS INFO
Courtesy of KIA MOTORS AMERICA, INC.

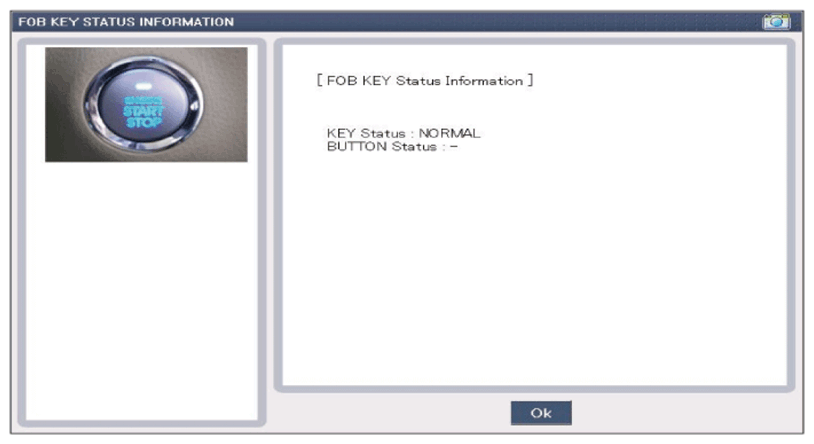

Fig 2: Scantool Display - FOB KEY STATUS INFO (Normal)
Courtesy of KIA MOTORS AMERICA, INC.
