Neutralization Status Check: Notes

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

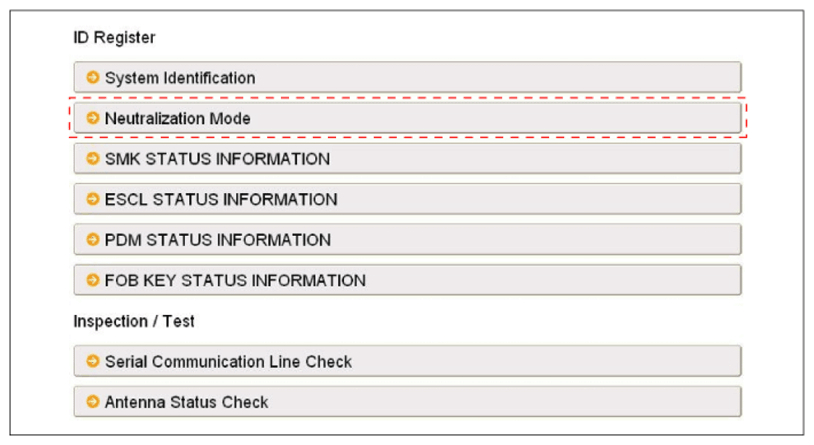

Fig 1: Scantool Display - Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

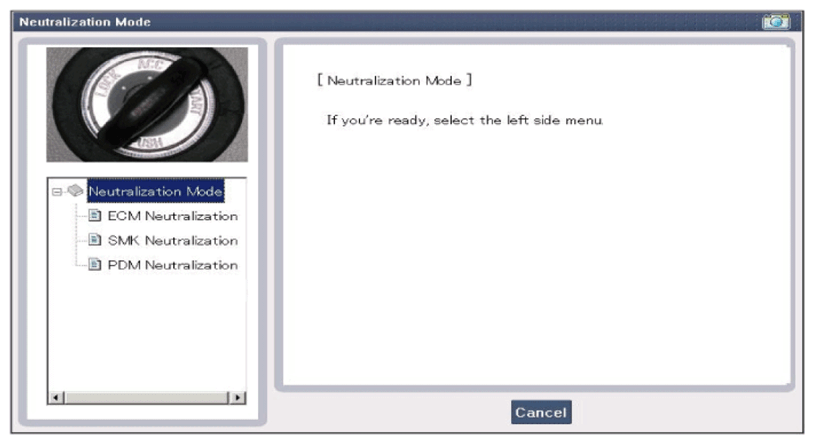

Fig 2: Scantool Display - Neutralization Mode
Courtesy of KIA MOTORS AMERICA, INC.

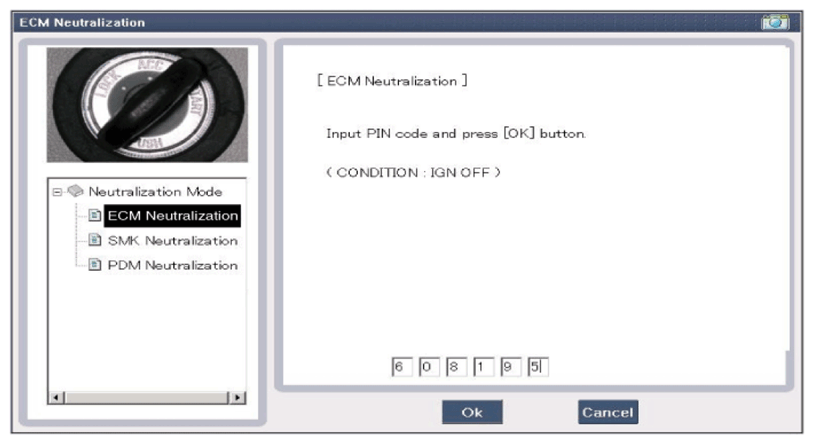

Fig 3: Scantool Display - ECM Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

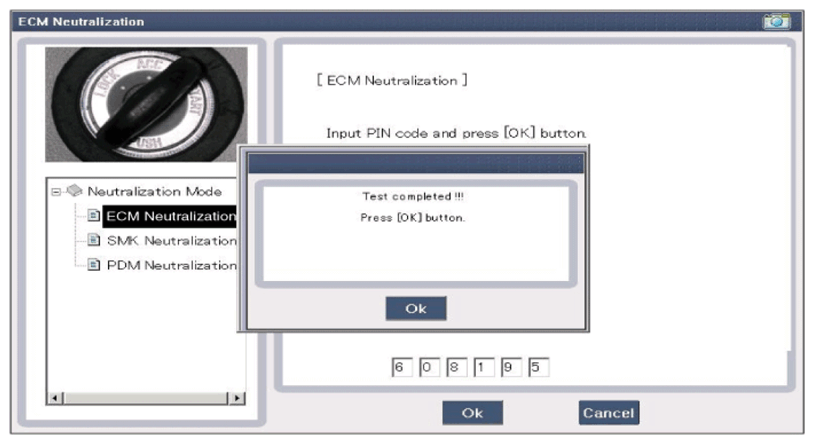

Fig 4: Scantool Display - ECM Neutralization (Test Complete)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Scantool Display - SMK Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scantool Display - SMK Neutralization (Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

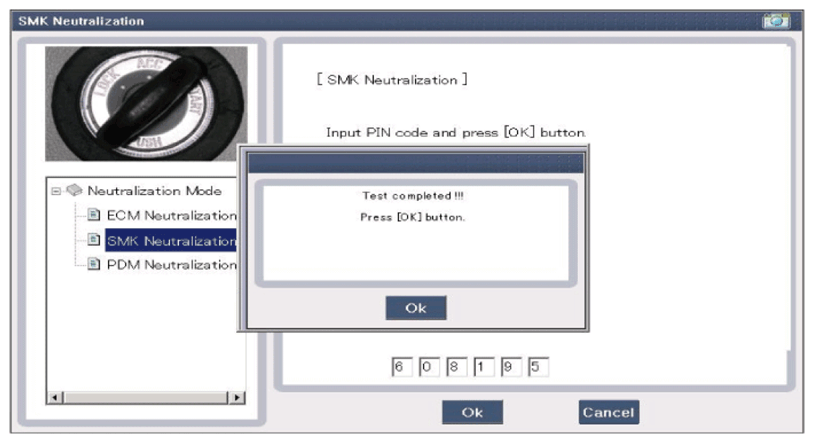

Fig 7: Scantool Display - SMK Neutralization (Test Complete)
Courtesy of KIA MOTORS AMERICA, INC.

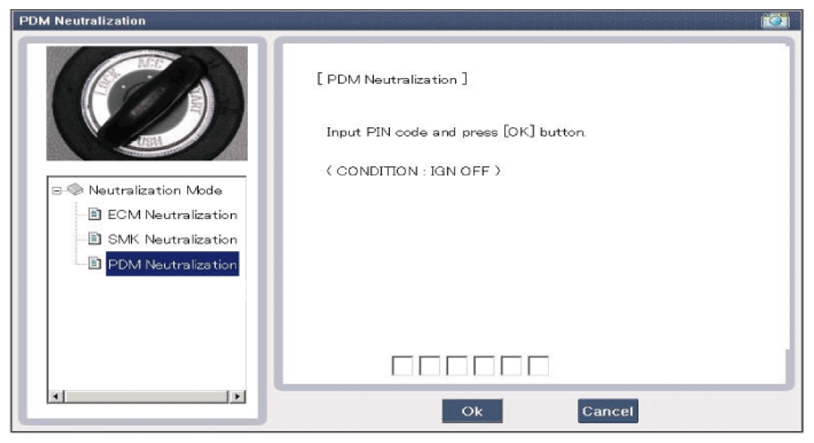

Fig 8: Scantool Display - PDM Neutralization
Courtesy of KIA MOTORS AMERICA, INC.

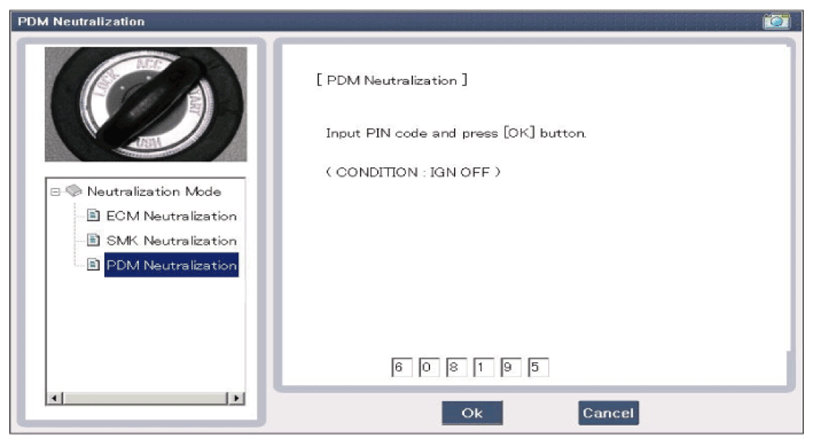

Fig 9: Scantool Display - PDM Neutralization (Pin Code)
Courtesy of KIA MOTORS AMERICA, INC.

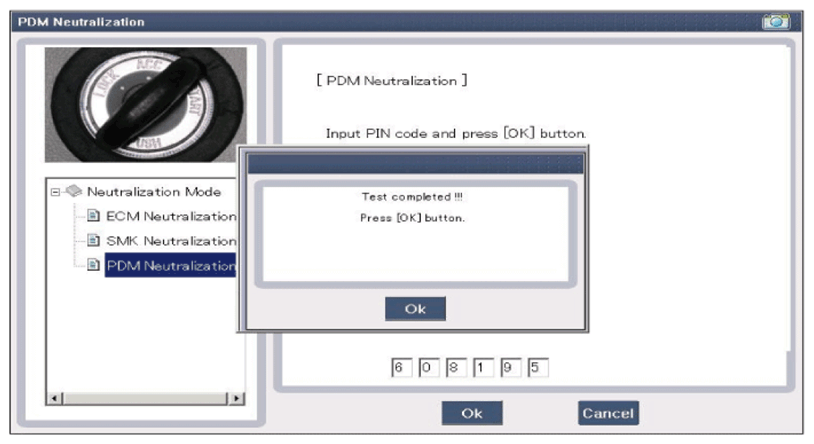

Fig 10: Scantool Display - PDM Neutralization (Test Complete)
Courtesy of KIA MOTORS AMERICA, INC.
