Components And Component Locations: Components

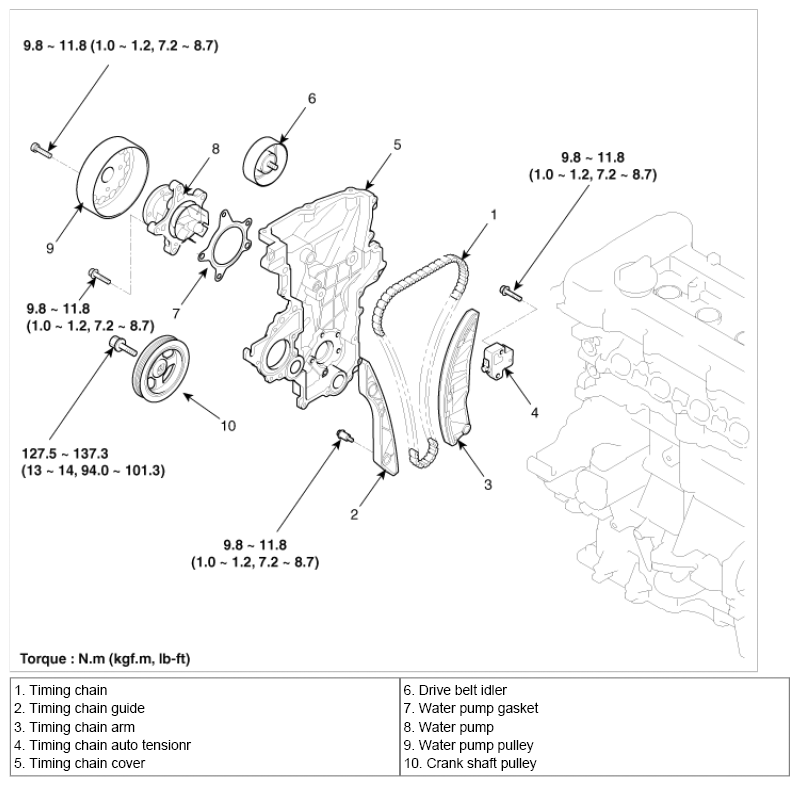

Fig 1: Timing System Replacement Components With Torque Specifications
G06525865Courtesy of KIA MOTORS AMERICA, INC.
