Components And Component Locations: Components

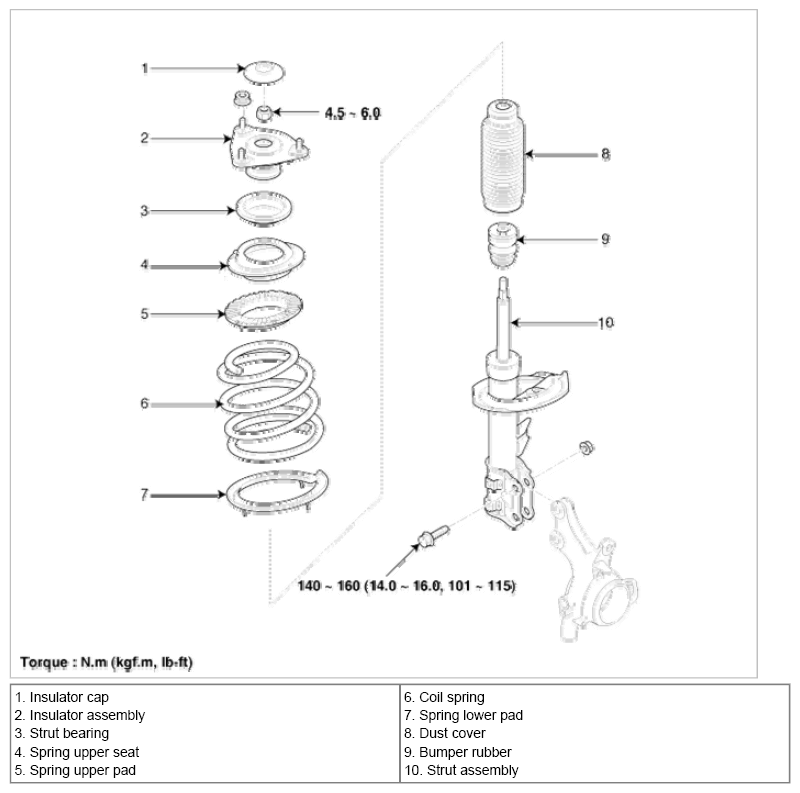

Fig 1: Exploded View Of Front Strut Assembly With Torque Specifications
G06523698Courtesy of KIA MOTORS AMERICA, INC.
