Components And Component Locations: Components

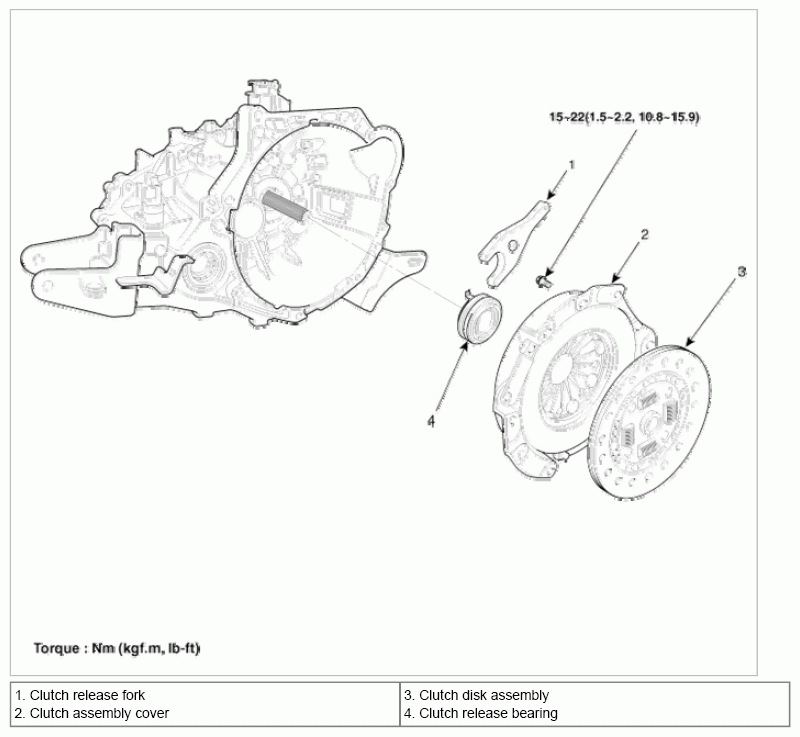

Fig 1: Clutch Cover & Disc Replacement Components With Torque Specifications
G06523511Courtesy of KIA MOTORS AMERICA, INC.
