System Specifications

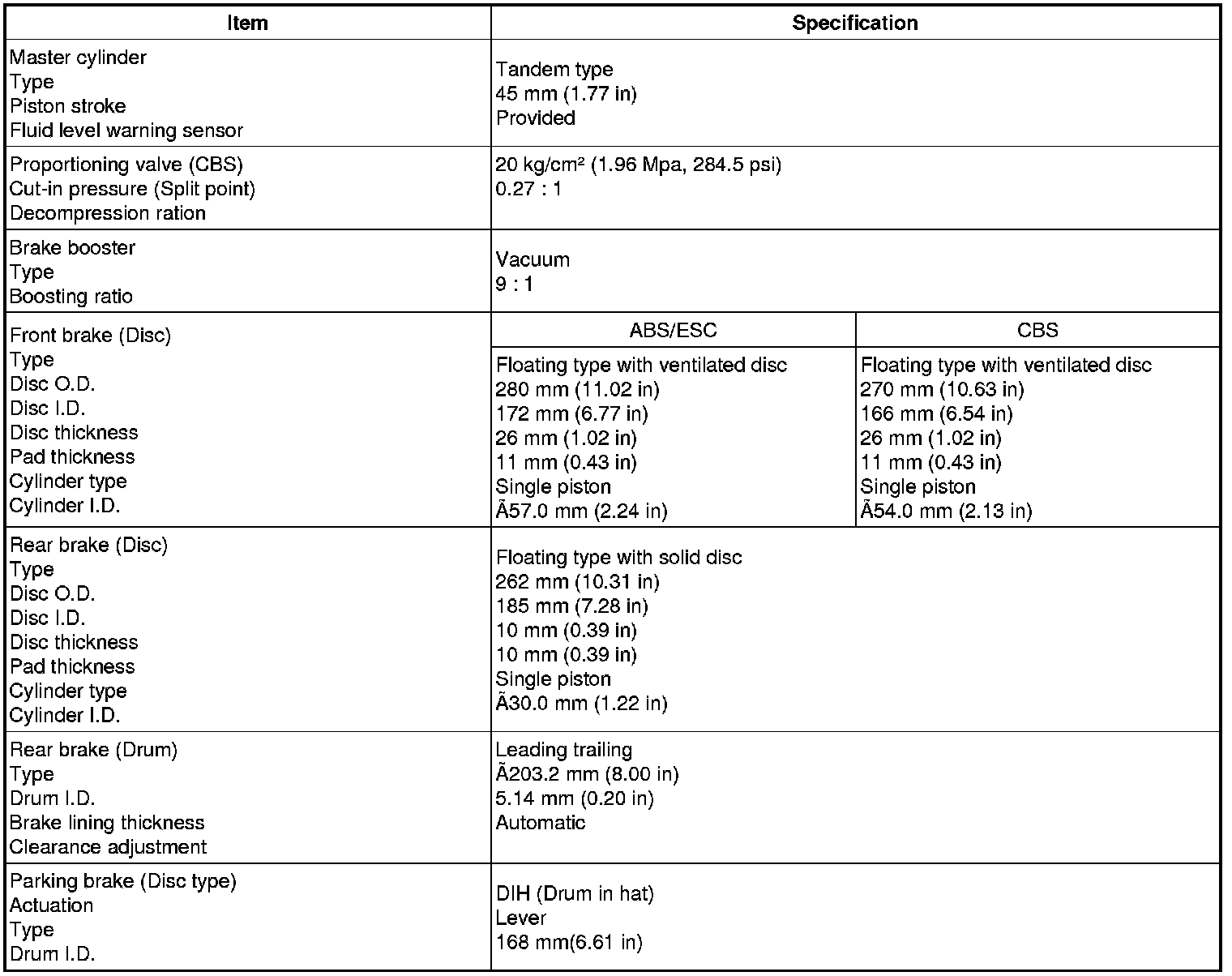

Specifications





NOTE:
O.D. : Outer Diameter
I.D : Inner Diameter

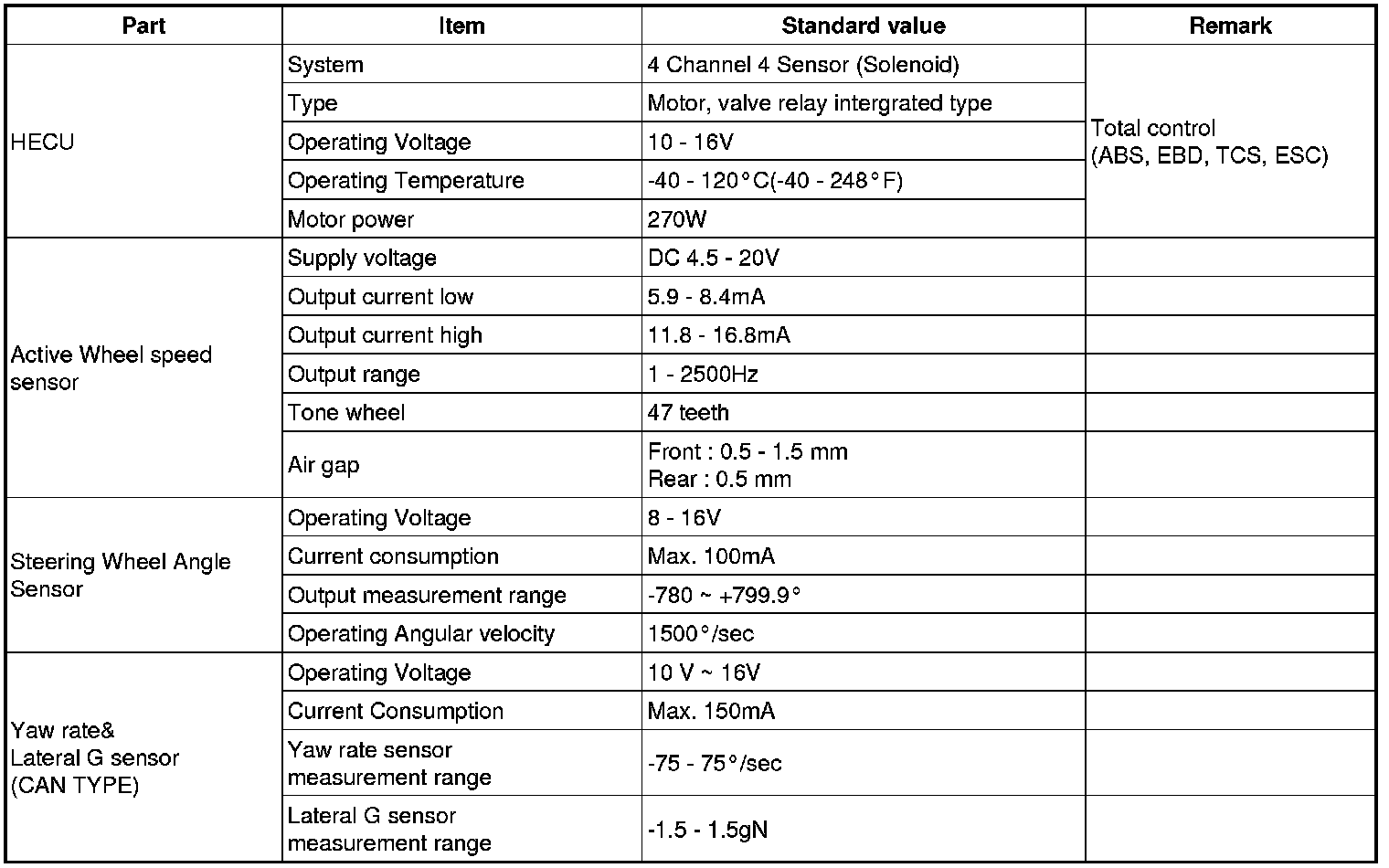

Specification(ABS)





Specification (ESC)






Service Standard

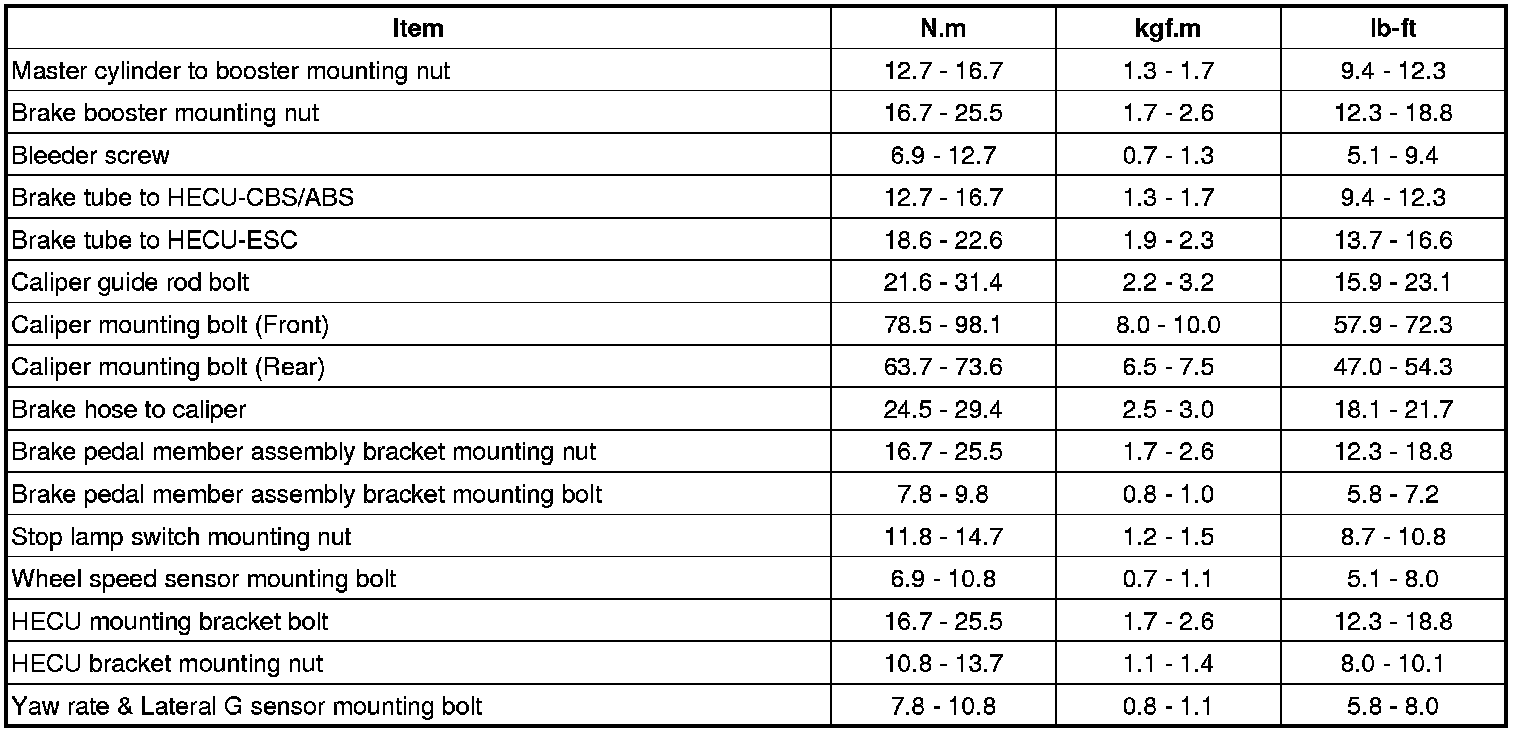

Tightening Torques






Lubricant
