Antilock Brakes / Traction Control Systems

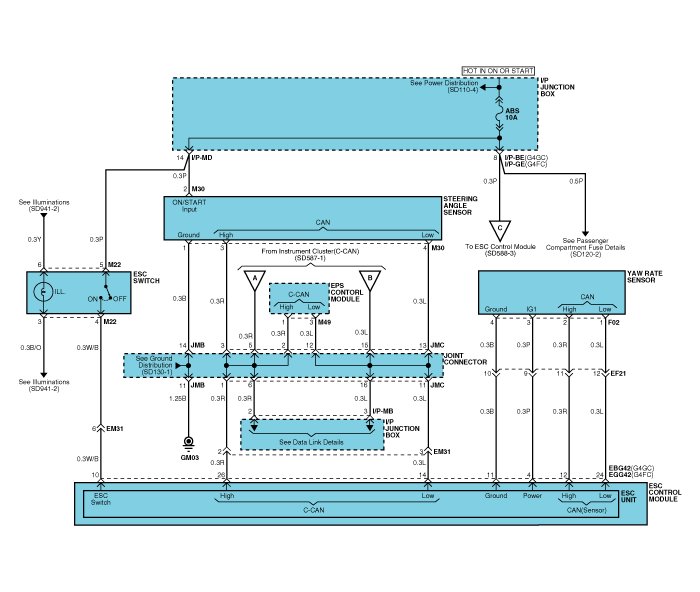

Circuit Diagram - ESC(1)

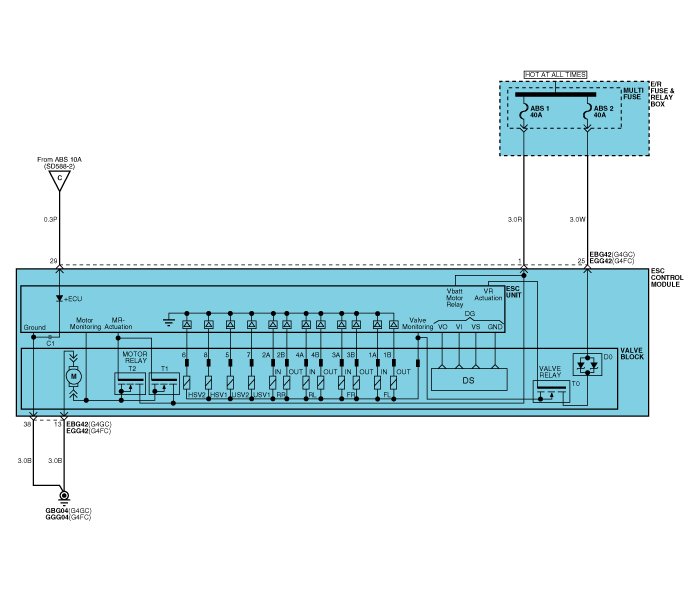

Circuit Diagram - ESC(2)

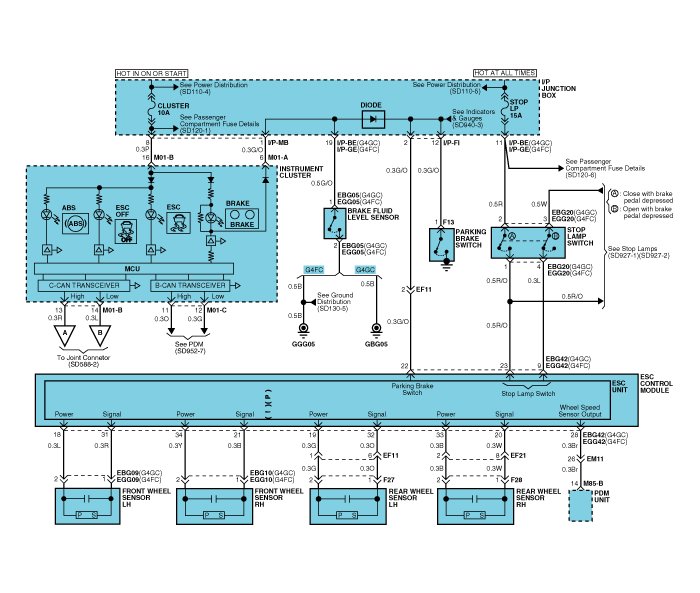

Circuit Diagram - ESC(3)

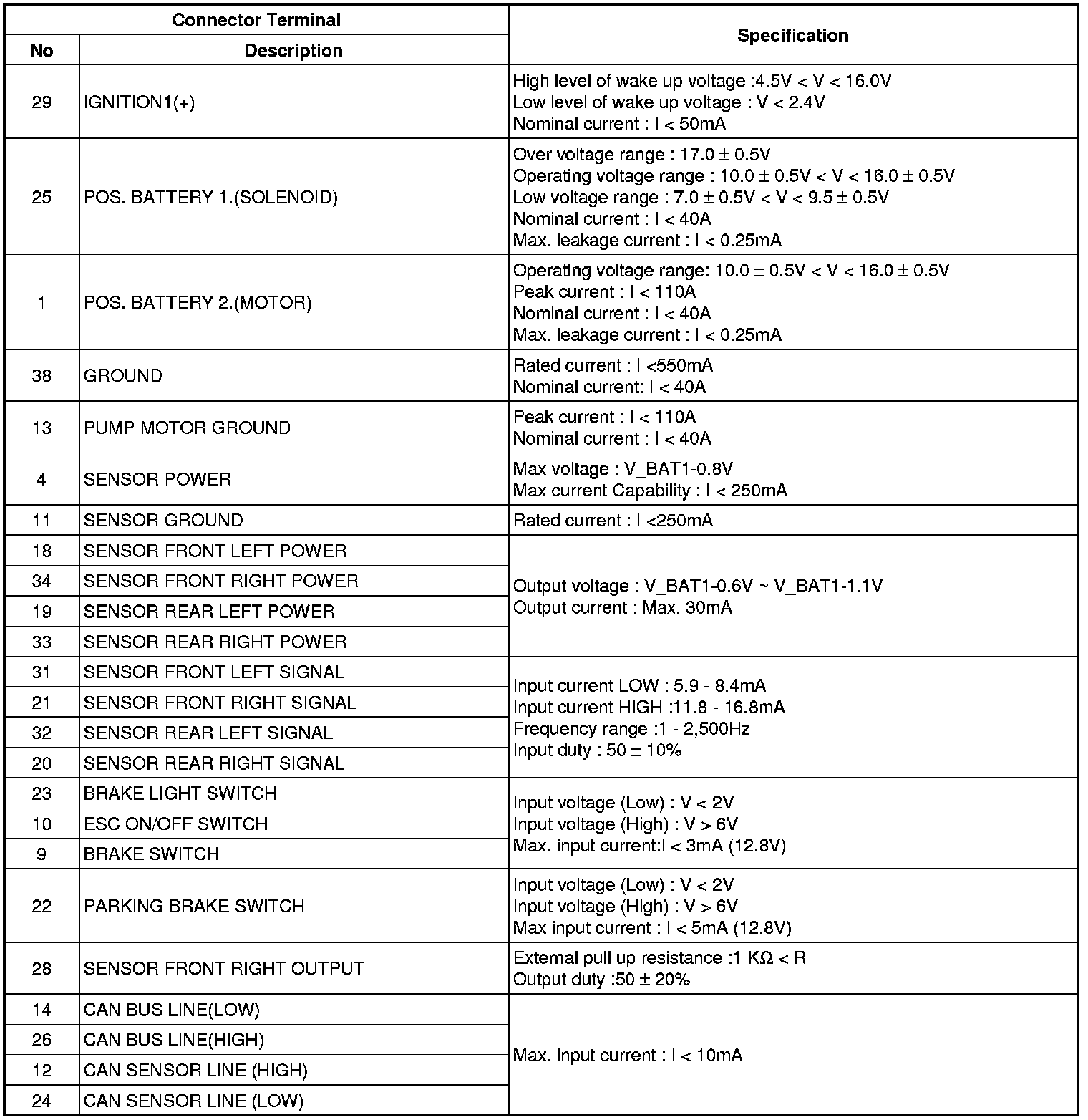

ESC Connector Input/Output
