Fuse: Locations

FUSE & RELAY INFORMATION

I/P Junction Box View:




I/P Junction Box Circuit Details:




E/R Fuse & Relay Box View:

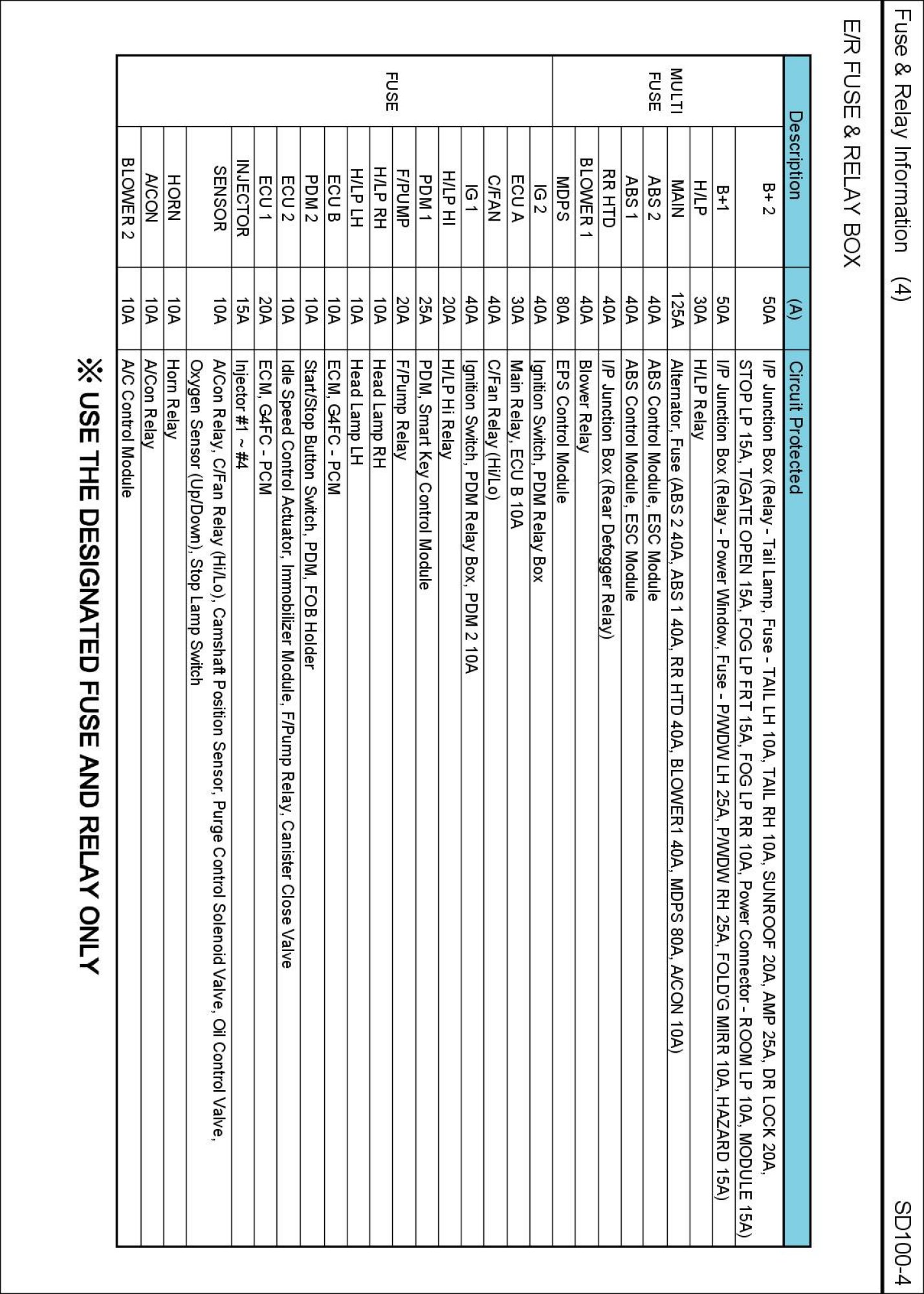

E/R Fuse & Relay Box Circuit Details:
