Components and Components Location: Components

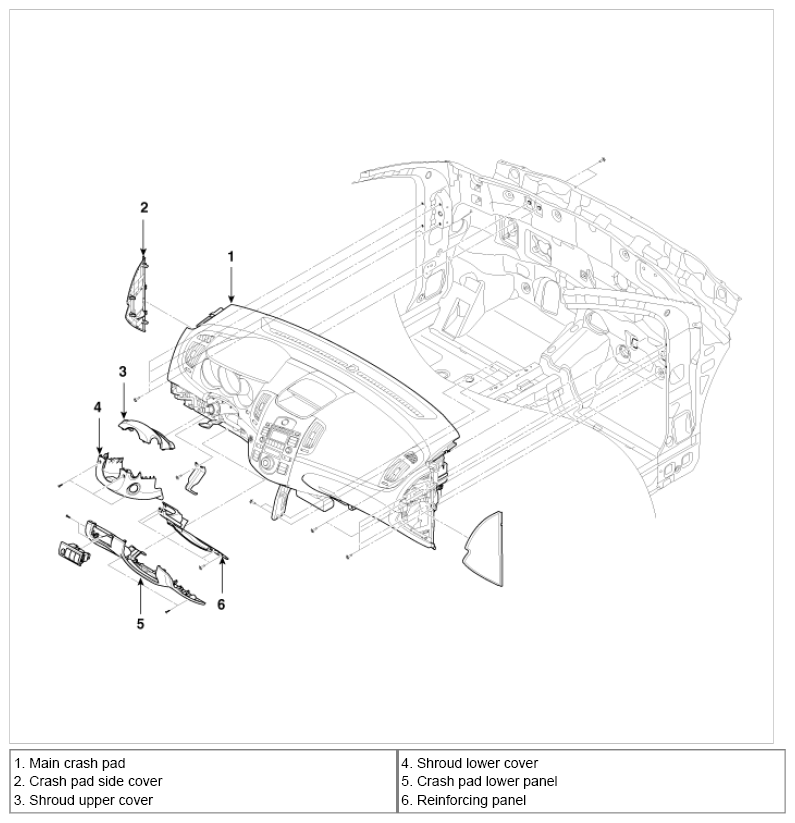

Fig 1: Identifying Crash Pad Components (1 Of 2)
G07368564Courtesy of KIA MOTORS AMERICA, INC.

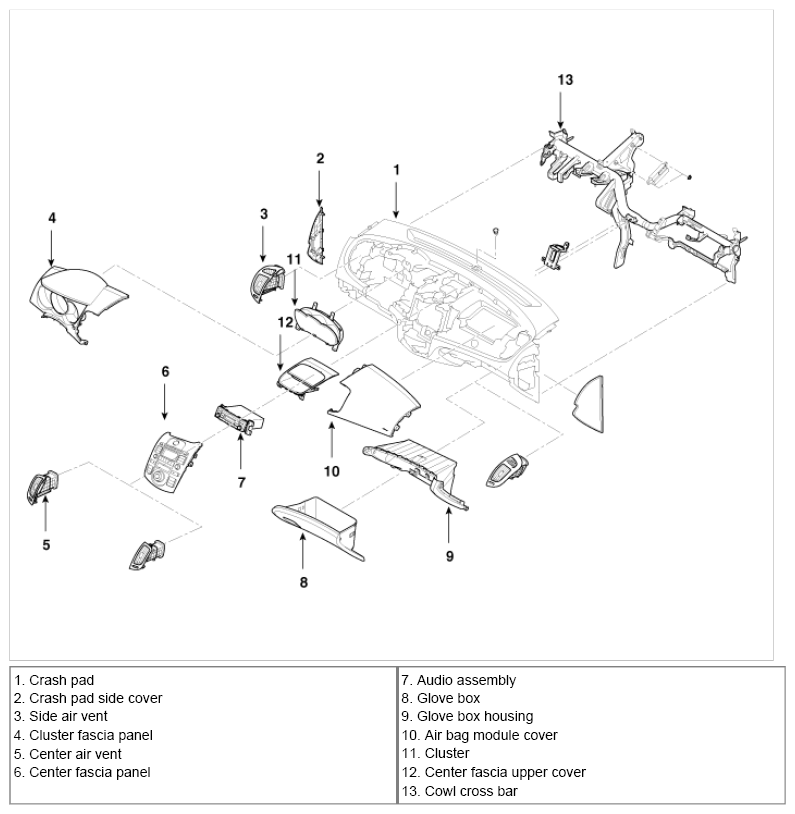

Fig 2: Identifying Crash Pad Components (2 Of 2)
G07368565Courtesy of KIA MOTORS AMERICA, INC.
