Repair Procedures

Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not bend or scratch the cover and other parts.

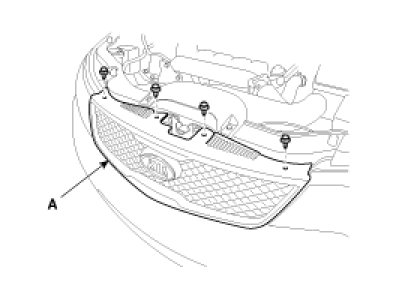

1. Remove the radiator upper cover (A).




2. After loosening the front bumper side's mounting screw and clips, then disconnect the side's.

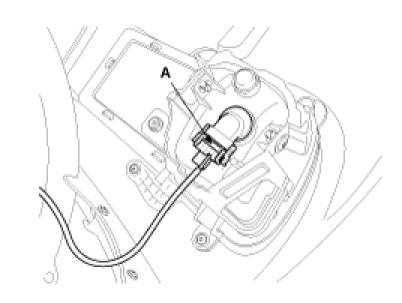

3. Disconnect the fog lamp connector (A).

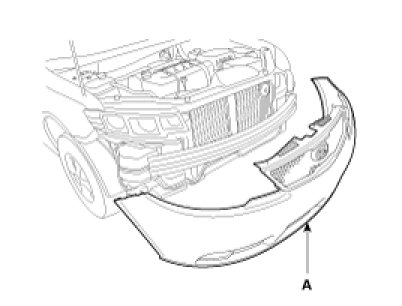

4. Remove the front bumper cover (A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
