Repair Procedures

Removal

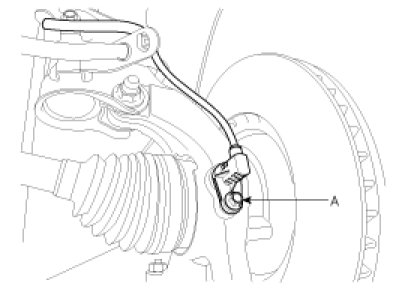

1. Remove the front wheel speed sensor mounting bolt (A).

Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)




2. Remove the front wheel guard.
3. Disconnect the front wheel speed sensor connector. And remove the front wheel speed sensor.
4. Installation is the reverse of removal.

Inspection

1. Measure the output voltage between the terminal of the wheel speed sensor and the body ground.

CAUTION:

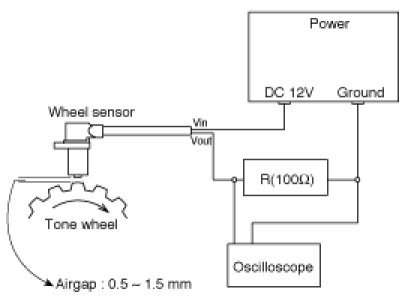

In order to protect the wheel speed sensor, when measuring output voltage, a 100 Ohms resister must be used as shown.




2. Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.





V_low : 0.59V ~ 0.84V
V_high : 1.18V ~ 1.68V
Frequency range : 1 - 2,500Hz
