Dome Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Detach the lamp lens(A) from the room lamp with a flat-tip screwdriver then remove the bulb(B).




3. Loosen the fixing screw (2EA) and disconnect the 3P connector(A). And then remove the room lamp assembly.






Installation

1. Install the room lamp assembly after connecting the lamp connector.
2. Install the lamp lens after assembling the bulb.

Inspection

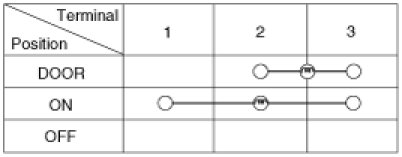

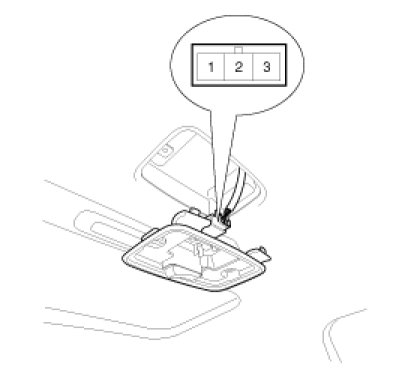

1. Remove the room lamp assembly then check for continuity between terminals.
