Rear Door Window Motor: Service and Repair

Replacement

Power Window Motor Replacement
1. Remove the door trim.
2. Disconnect the speaker connector (A).

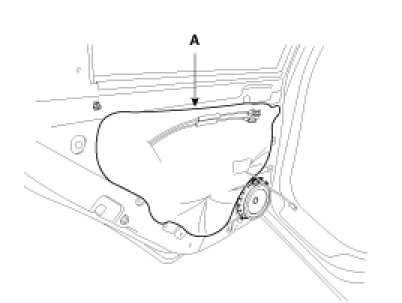

3. Remove the door screen (A).

NOTE:
- Replace any damaged door seal.

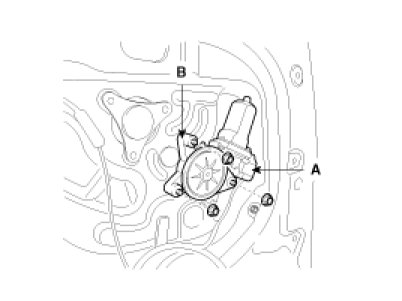

4. After disconnecting the connector (A), unbolt motor, remove the power window motor (B).




5. Installation is the reverse of removal.

NOTE:
- Grease should be applied to areas where there is rotational parts and springs.
- Roll the glass up and down to see if it moves freely without binding.
